  9. Mini-Fit Jr. F-S 300Mm 16 Awg Bk Sn
Shop All High Temperature Lead Wire
Molex

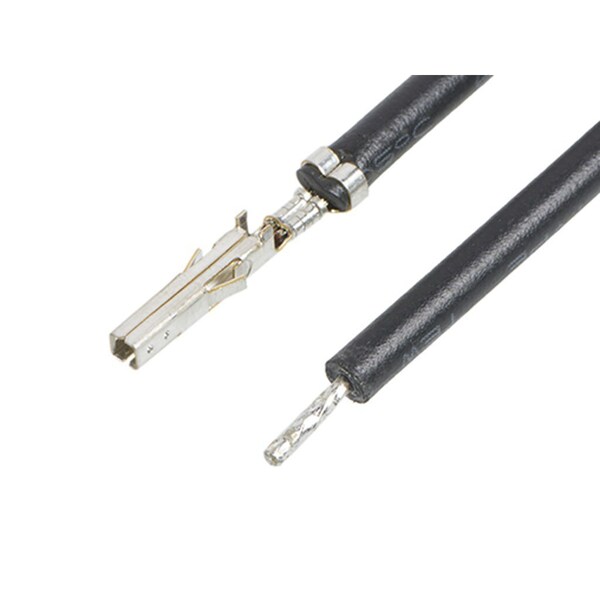

Mini-Fit Jr. F-S 300Mm 16 Awg Bk Sn

product price: $1.15
/ea
Sold in multiples of 1500 for $1,725.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 215341
  • Application Power, Wire-to-Board, Wire-to-Wire
  • Jacket Color Black
  • Spool Length 300 mm
  • Max. Amps 9 A
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Spool Length 300 mm
Wire Insulation Diameter 1.80-3.10mm
Cable Length 300.00mm
Wire Size (AWG) 16

Details

Series 215341
Application Power, Wire-to-Board, Wire-to-Wire
Jacket Color Black
Max. Amps 9 A
Wire Gauge 16 AWG
Voltage 600V
Conductor Material Brass
Standards UL 1015
Gender Female-Pigtail
Circuits (Loaded) 1
Assembly Configuration Pre-crimped Lead Only
Current - Maximum per Contact 9.0A
Material - Plating Termination Tin
Material - Plating Mating Tin
Connector to Connector Mini-Fit Jr. Term-to-Pigtail
Product Name Mini-Fit Jr.
Termination Interface Style Crimp or Compression
Single Ended Yes
