Molex

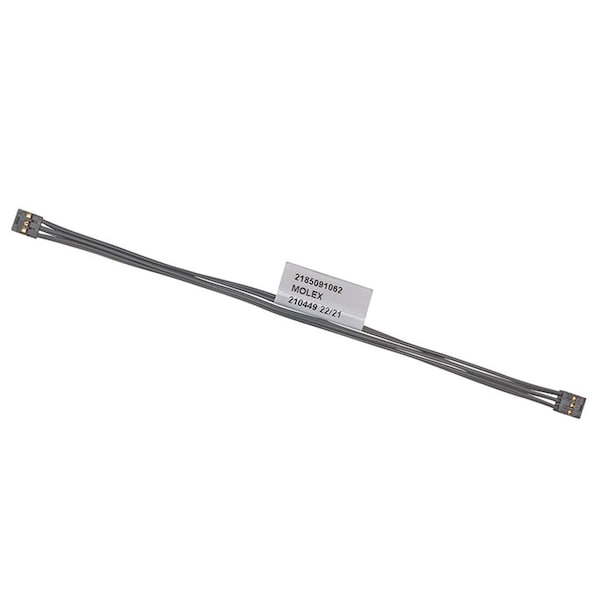

Milli-Grid Dr R-R 6Ckt 50Mm Disc Sn
Mfr # 2185091060
Zoro # G905925757
product price: $3.39
/ea
Sold in multiples of 800 for $2,712.00
$2,712.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Series 218509
- Cable Length 50.00mm
- Type Discrete Wire Assembly
- Material - Metal Copper Alloy
- Material - Plating Mating Matte Tin
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2185091060
- Zoro # G905925757
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 50.00mm |
Wire Insulation Diameter | 1.40mm max. |
Wire Size (AWG) | 24 |
Details
Series | 218509 |
Type | Discrete Wire Assembly |
Material - Metal | Copper Alloy |
Material - Plating Mating | Matte Tin |
Gender | Female-Female |
Current - Maximum per Contact | 2.0A |
Single Ended | No |
Color - Resin | Black |
Wire/Cable Type | UL 10002 |
Product Name | Milli-Grid |
Assembly Configuration | Dual Ended Connectors |
Pitch - Mating Interface | 2.00mm |
Material - Resin | Polyester |
Number of Rows | 2 |
Circuits (Loaded) | 6 |
Voltage - Maximum | 125V AC (RMS)/DC |
Lock to Mating Part | Yes |
Termination Interface Style | Crimp or Compression |
