Shop All High Temperature Lead Wire
Molex

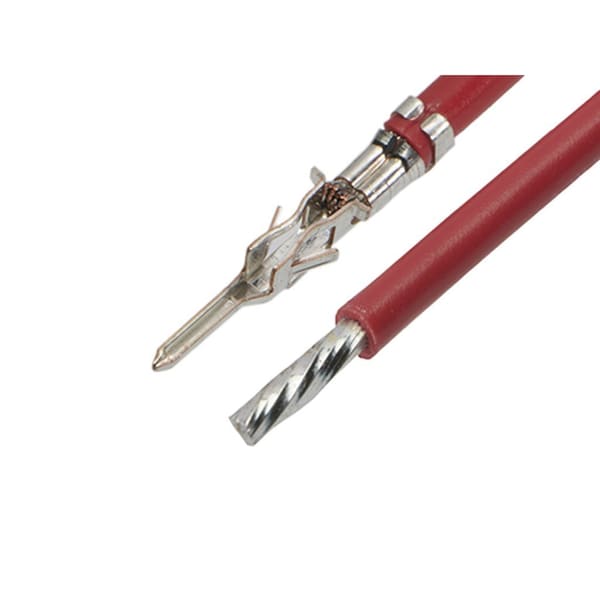

Microfit 3.0 M-S 450Mm 18Awg Leads Rd Sn
Mfr # 2147632125
Zoro # G505922330
Sold in multiples of 75 for $108.75
$108.75
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Jacket Color Red
- Wire Gauge 18 AWG
- Conductor Material Phosphor Bronze
- Standards UL 10002
- Max. Amps 8.5A
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2147632125
- Zoro # G505922330
- Country of Origin Thailand
- Category High Temperature Lead Wire
Dimensions
Spool Length | 450 mm |
Wire Size (AWG) | 18 |
Wire Insulation Diameter | 1.85mm max. |
Cable Length | 450.00mm |
Details
Jacket Color | Red |
Wire Gauge | 18 AWG |
Conductor Material | Phosphor Bronze |
Standards | UL 10002 |
Max. Amps | 8.5A |
Material - Plating Termination | Tin |
Circuits (Loaded) | 1 |
Plating min - Mating | 1.016µm |
Single Ended | Yes |
Material - Plating Mating | Tin |
Series | 214763 |
Product Name | Micro-Fit 3.0 |
Application | Power, Wire-to-Wire |
Assembly Configuration | Pre-crimped Lead Only |
Connector to Connector | Micro-Fit 3.0 Term-to-Pigtail |
Gender | Male-Pigtail |
Termination Interface Style | Crimp or Compression |
