Shop All High Temperature Lead Wire
Molex

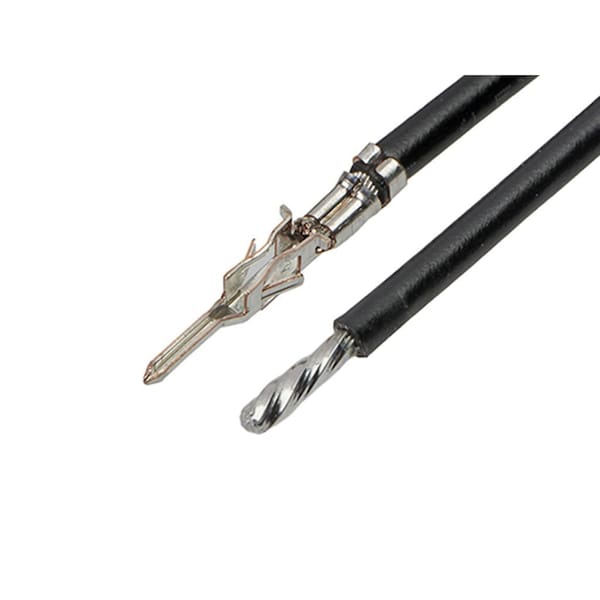

Microfit 3.0 M-S 300Mm 20Awg Leads Bk Au
Mfr # 2147631214
Zoro # G205922609
Sold in multiples of 95 for $95.00
$95.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 214763
- Application Power, Wire-to-Wire
- Standards UL 10002
- Conductor Material Phosphor Bronze
- Wire Gauge 20 AWG
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2147631214
- Zoro # G205922609
- Country of Origin Thailand
- Category High Temperature Lead Wire
Dimensions
Spool Length | 300 mm |
Cable Length | 300.00mm |
Wire Size (AWG) | 20 |
Wire Insulation Diameter | 1.85mm max. |
Details
Series | 214763 |
Application | Power, Wire-to-Wire |
Standards | UL 10002 |
Conductor Material | Phosphor Bronze |
Wire Gauge | 20 AWG |
Max. Amps | 8.5A |
Jacket Color | Black |
Material - Plating Termination | Tin |
Gender | Male-Pigtail |
Product Name | Micro-Fit 3.0 |
Plating min - Mating | 0.762µm |
Assembly Configuration | Pre-crimped Lead Only |
Material - Plating Mating | Gold |
Termination Interface Style | Crimp or Compression |
Single Ended | Yes |
Connector to Connector | Micro-Fit 3.0 Term-to-Pigtail |
Circuits (Loaded) | 1 |
