  9. Microfit 3.0 M-S 300Mm 18Awg Leads Bk Sn
Shop All High Temperature Lead Wire
Molex

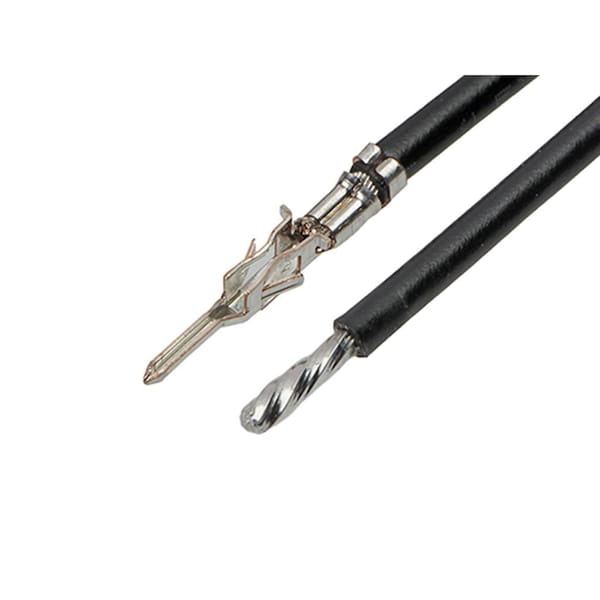

Microfit 3.0 M-S 300Mm 18Awg Leads Bk Sn

product price: $1.45
/ea
Sold in multiples of 75 for $108.75
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Standards UL 10002
  • Jacket Color Black
  • Spool Length 300 mm
  • Max. Amps 8.5A
  • Conductor Material Phosphor Bronze
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Spool Length 300 mm
Wire Size (AWG) 18
Cable Length 300.00mm
Wire Insulation Diameter 1.85mm max.

Details

Standards UL 10002
Jacket Color Black
Max. Amps 8.5A
Conductor Material Phosphor Bronze
Wire Gauge 18 AWG
Assembly Configuration Pre-crimped Lead Only
Single Ended Yes
Termination Interface Style Crimp or Compression
Material - Plating Mating Tin
Circuits (Loaded) 1
Series 214763
Connector to Connector Micro-Fit 3.0 Term-to-Pigtail
Gender Male-Pigtail
Application Power, Wire-to-Wire
Product Name Micro-Fit 3.0
Material - Plating Termination Tin
Plating min - Mating 1.016µm
