Molex

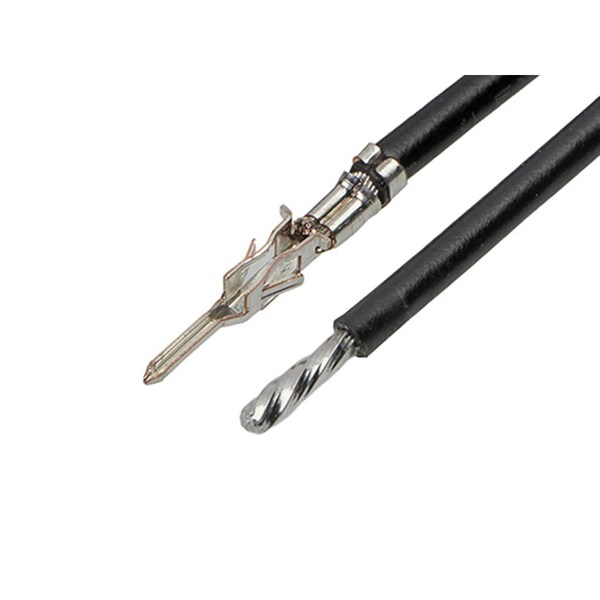

Microfit 3.0 M-S 225Mm 20Awg Leads Bk Sn

product price: $1.15
/ea
Sold in multiples of 1500 for $1,725.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Wire Gauge 20 AWG
  • Max. Amps 8.5A
  • Jacket Color Black
  • Spool Length 225 mm
  • Standards UL 10002
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Spool Length 225 mm
Cable Length 225.00mm
Wire Size (AWG) 20
Wire Insulation Diameter 1.85mm max.

Details

Wire Gauge 20 AWG
Max. Amps 8.5A
Jacket Color Black
Standards UL 10002
Conductor Material Phosphor Bronze
Gender Male-Pigtail
Assembly Configuration Pre-crimped Lead Only
Material - Plating Mating Tin
Termination Interface Style Crimp or Compression
Single Ended Yes
Series 214763
Connector to Connector Micro-Fit 3.0 Term-to-Pigtail
Application Power, Wire-to-Wire
Material - Plating Termination Tin
Plating min - Mating 1.016µm
Circuits (Loaded) 1
Product Name Micro-Fit 3.0
