Shop All High Temperature Lead Wire
Molex

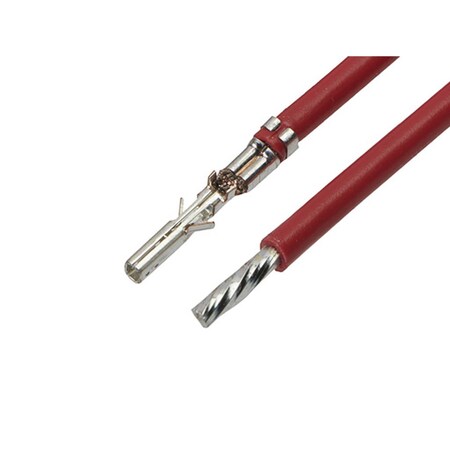

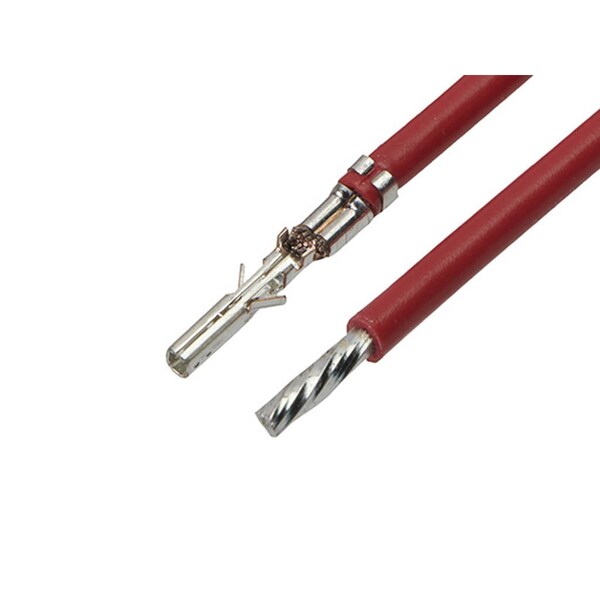

Microfit 3.0 F-S 75Mm 22Awg Leads Rd Sn
Mfr # 2147612101
Zoro # G005922403
product price: $1.00
/ea
Sold in multiples of 3000 for $3,000.00
$3,000.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Max. Amps 8.5A
- Conductor Material Phosphor Bronze
- Wire Gauge 22 AWG
- Spool Length 75 mm
- Jacket Color Red
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2147612101
- Zoro # G005922403
- Country of Origin India
- Category High Temperature Lead Wire
Dimensions
Spool Length | 75 mm |
Wire Size (AWG) | 22 |
Wire Insulation Diameter | 1.85mm max. |
Cable Length | 75.00mm |
Details
Max. Amps | 8.5A |
Conductor Material | Phosphor Bronze |
Wire Gauge | 22 AWG |
Jacket Color | Red |
Standards | UL 10002 |
Termination Interface Style | Crimp or Compression |
Product Name | Micro-Fit 3.0 |
Material - Plating Termination | Tin |
Assembly Configuration | Pre-crimped Lead Only |
Series | 214761 |
Application | Power, Wire-to-Board, Wire-to-Wire |
Plating min - Mating | 1.016µm |
Material - Plating Mating | Tin |
Gender | Female-Pigtail |
Connector to Connector | Micro-Fit 3.0 Term-to-Pigtail |
Single Ended | Yes |
Circuits (Loaded) | 1 |
