Molex

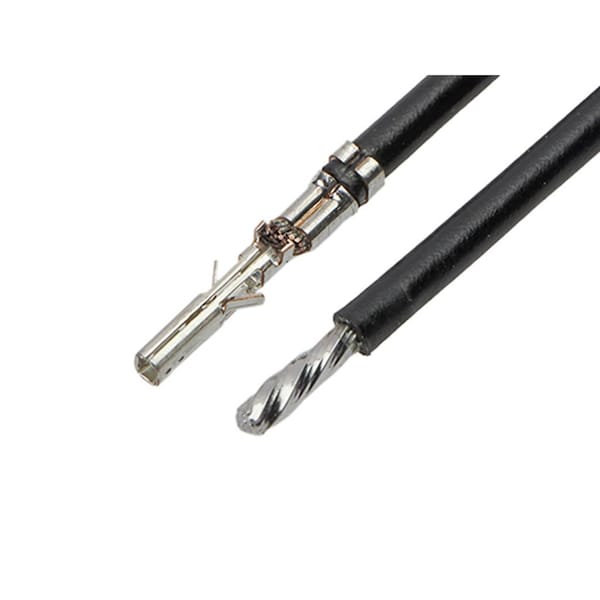

Microfit 3.0 F-S 450Mm 22Awg Leads Bk Au

product price: $1.39
/ea
Sold in multiples of 1250 for $1,737.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Conductor Material Phosphor Bronze
  • Standards UL 10002
  • Wire Gauge 22 AWG
  • Max. Amps 8.5A
  • Jacket Color Black
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Spool Length 450 mm
Cable Length 450.00mm
Wire Insulation Diameter 1.85mm max.
Wire Size (AWG) 22

Details

Conductor Material Phosphor Bronze
Standards UL 10002
Wire Gauge 22 AWG
Max. Amps 8.5A
Jacket Color Black
Material - Plating Termination Tin
Material - Plating Mating Gold
Series 214761
Single Ended Yes
Product Name Micro-Fit 3.0
Assembly Configuration Pre-crimped Lead Only
Circuits (Loaded) 1
Plating min - Mating 0.762µm
Gender Female-Pigtail
Application Power, Wire-to-Board, Wire-to-Wire
Connector to Connector Micro-Fit 3.0 Term-to-Pigtail
Termination Interface Style Crimp or Compression
