  9. Microfit 3.0 F-S 300Mm 20Awg Leads Rd Sn
Shop All High Temperature Lead Wire
Molex

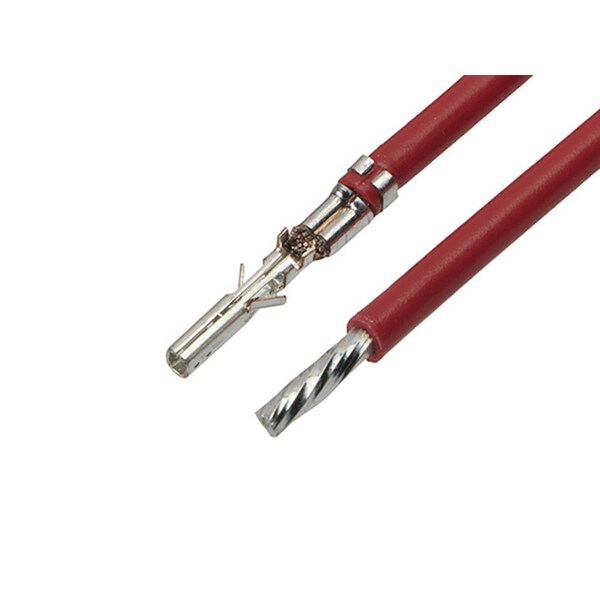

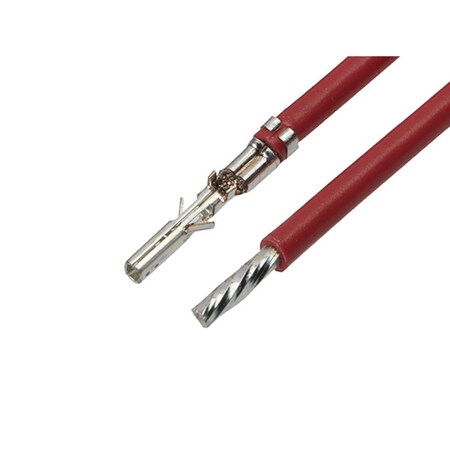

Microfit 3.0 F-S 300Mm 20Awg Leads Rd Sn

product price: $1.00
/ea
Sold in multiples of 3000 for $3,000.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 214761
  • Application Power, Wire-to-Board, Wire-to-Wire
  • Conductor Material Phosphor Bronze
  • Spool Length 300 mm
  • Max. Amps 8.5A
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Spool Length 300 mm
Cable Length 300.00mm
Wire Size (AWG) 20
Wire Insulation Diameter 1.85mm max.

Details

Series 214761
Application Power, Wire-to-Board, Wire-to-Wire
Conductor Material Phosphor Bronze
Max. Amps 8.5A
Standards UL 10002
Jacket Color Red
Wire Gauge 20 AWG
Material - Plating Mating Tin
Connector to Connector Micro-Fit 3.0 Term-to-Pigtail
Plating min - Mating 1.016µm
Material - Plating Termination Tin
Termination Interface Style Crimp or Compression
Assembly Configuration Pre-crimped Lead Only
Circuits (Loaded) 1
Product Name Micro-Fit 3.0
Gender Female-Pigtail
Single Ended Yes
