  9. Microfit 3.0 F-S 225Mm 20Awg Leads Rd Au
Shop All High Temperature Lead Wire
Molex

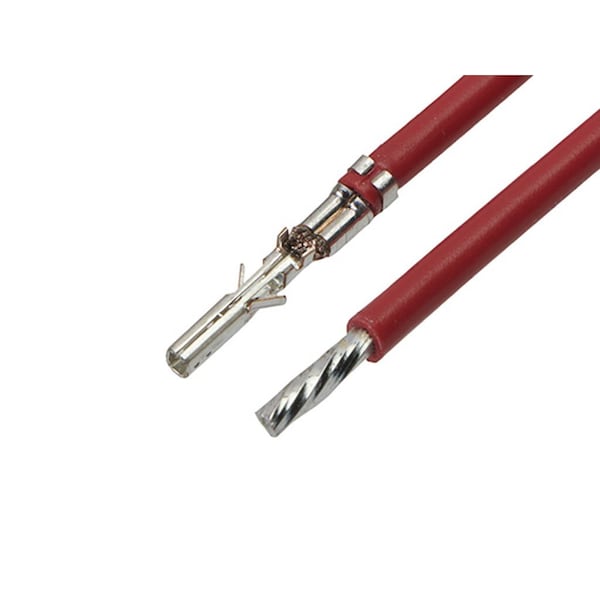

Microfit 3.0 F-S 225Mm 20Awg Leads Rd Au

product price: $1.00
/ea
Sold in multiples of 95 for $95.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series 214761
  • Application Power, Wire-to-Board, Wire-to-Wire
  • Standards UL 10002
  • Wire Gauge 20 AWG
  • Max. Amps 8.5A
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Spool Length 225 mm
Wire Insulation Diameter 1.85mm max.
Cable Length 225.00mm
Wire Size (AWG) 20

Details

Series 214761
Application Power, Wire-to-Board, Wire-to-Wire
Standards UL 10002
Wire Gauge 20 AWG
Max. Amps 8.5A
Conductor Material Phosphor Bronze
Jacket Color Red
Connector to Connector Micro-Fit 3.0 Term-to-Pigtail
Product Name Micro-Fit 3.0
Single Ended Yes
Gender Female-Pigtail
Circuits (Loaded) 1
Plating min - Mating 0.762µm
Material - Plating Mating Gold
Material - Plating Termination Tin
Termination Interface Style Crimp or Compression
Assembly Configuration Pre-crimped Lead Only
