Shop All Sensor Cordsets & Receptacles
Molex

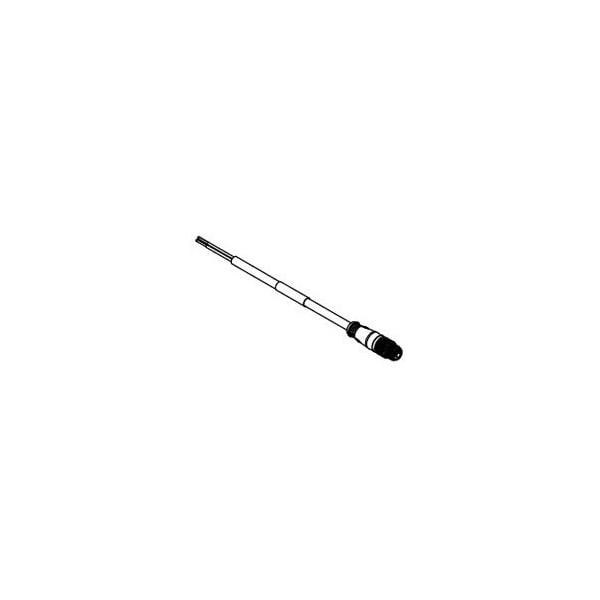

MIC 5P M/MP 3M ST DEVICENET
Mfr # 1300270015
Zoro # G4030114
product price: $42.59
/ea
Sold in multiples of 2 for $85.18
$85.18
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Cable Length 3.0m (9.84')
- Keyway Single
- LED Indicator No
- Material - Cable Jacket PVC
- Voltage - Maximum 250V AC/DC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 1300270015
- Zoro # G4030114
- UPC # 78678830023
- Country of Origin Mexico
- Category Sensor Cordsets & Receptacles
Dimensions
Cable Length | 3.0m (9.84') |
Wire Size AWG | 22 |
Cable Diameter | 7.24mm (.285") |
Details
Keyway | Single |
LED Indicator | No |
Material - Cable Jacket | PVC |
Voltage - Maximum | 250V AC/DC |
CSA | LR6837 |
Temperature Range - Operating | -20°C to +80°C |
Material - Plating Mating | Gold |
Gender | Male-Pigtail |
Poles | 5 |
UL | E152210 |
Current - Maximum per Contact | 4.0A |
Color - Cable Jacket | Gray |
Orientation | Straight to Pigtail |
Coupling Style | Threaded |
Wire/Cable Type | Shielded-Twisted Pair |
Material - Coupling Nut | Die-Cast Zinc |
Material - Connector Body | PVC |
