Molex

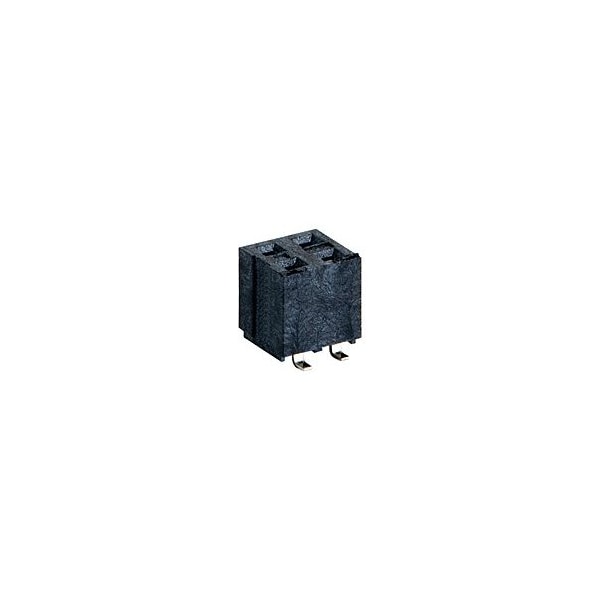

MGrid VRec /Cap O/Pg T&R .38AuLF 8Ckt
Mfr # 79109-8403
Zoro # G7770564
product price: $3.15
/ea
Sold in multiples of 500 for $1,575.00
$1,575.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Flammability 94V-0
- Circuits (maximum) 8
- Plating min - Termination 1.905µm
- CSA LR19980
- Circuits (Loaded) 8
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 79109-8403
- Zoro # G7770564
- Country of Origin Unknown
- Category Hazardous Location Plugs
Details
Flammability | 94V-0 |
Circuits (maximum) | 8 |
Plating min - Termination | 1.905µm |
CSA | LR19980 |
Circuits (Loaded) | 8 |
Material - Resin | High Temperature Thermoplastic |
Max. Cycles at Max. Process Temperature | 1 |
Process Temperature max. C | 260 |
UL | E29179 |
Pitch - Mating Interface | 2.00mm |
Plating min - Mating | 0.381µm |
Duration at Max. Process Temperature (seconds) | 10 |
Material - Plating Termination | Tin |
Temperature Range - Operating | -55° to +105°C |
Termination Interface: Style | Surface Mount |
Material - Plating Mating | Gold |
Orientation | Vertical |
Color - Resin | Black |
Material - Metal | Phosphor Bronze |
Current - Maximum per Contact | 1.0A |
Voltage - Maximum | 125V |
Number of Rows | 2 |
Durability (mating cycles max) | 50 |
