Shop All Hazardous Location Plugs
Molex

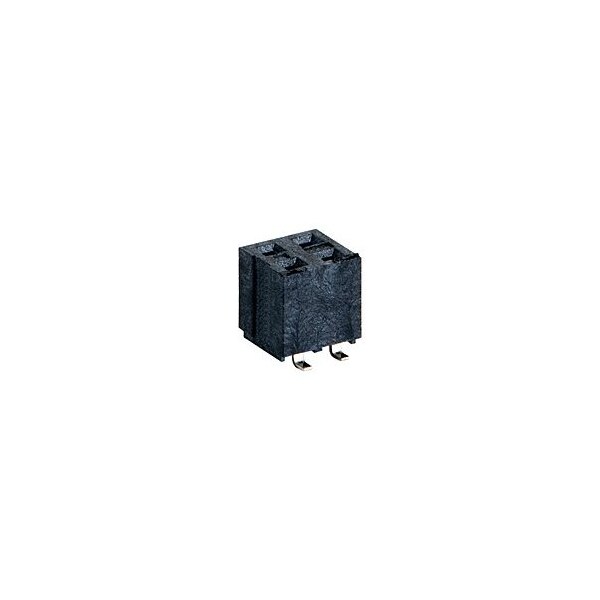

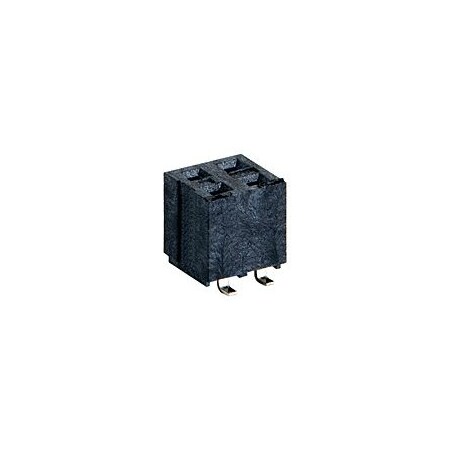

MGrid VRec /Cap O/pg T&R .38AuLF 4Ckt
Mfr # 79109-8401
Zoro # G2757943
product price: $1.29
/ea
Sold in multiples of 500 for $645.00
$645.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Max. Cycles at Max. Process Temperature 1
- Circuits (Loaded) 4
- Material - Metal Phosphor Bronze
- Voltage - Maximum 125V
- Color - Resin Black
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 79109-8401
- Zoro # G2757943
- Country of Origin Malaysia
- Category Hazardous Location Plugs
Details
Max. Cycles at Max. Process Temperature | 1 |
Circuits (Loaded) | 4 |
Material - Metal | Phosphor Bronze |
Voltage - Maximum | 125V |
Color - Resin | Black |
Pitch - Mating Interface | 2.00mm |
Material - Resin | High Temperature Thermoplastic |
Plating min - Mating | 0.381µm |
CSA | LR19980 |
Process Temperature max. C | 260 |
UL | E29179 |
Duration at Max. Process Temperature (seconds) | 10 |
Termination Interface: Style | Surface Mount |
Number of Rows | 2 |
Flammability | 94V-0 |
Current - Maximum per Contact | 1.0A |
Circuits (maximum) | 4 |
Durability (mating cycles max) | 50 |
Temperature Range - Operating | -55° to +105°C |
Plating min - Termination | 1.905µm |
Orientation | Vertical |
Material - Plating Mating | Gold |
Material - Plating Termination | Tin |
