  9. Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 600.00Mm Length, Tin
Shop All Communication Cables
Molex

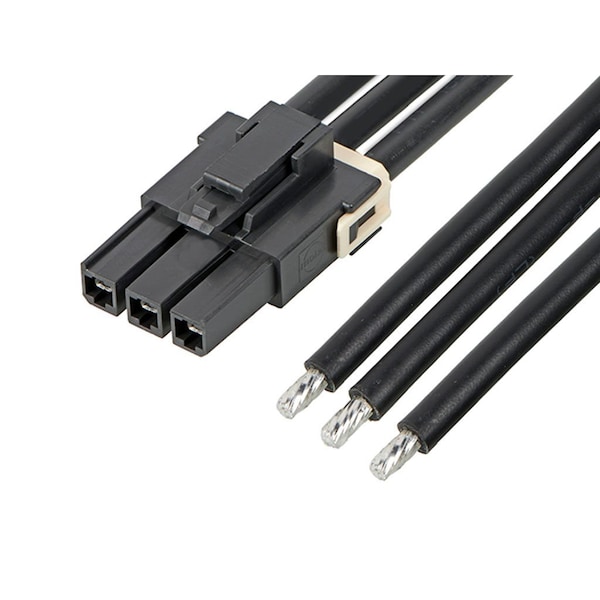

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 600.00Mm Length, Tin

product price: $10.25
/ea
Sold in multiples of 10 for $102.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Length 600.00mm
  • Current - Maximum per Contact 25.0A
  • Pitch - Mating Interface 5.70mm
  • Material - Plating Mating Tin
  • Lock to Mating Part Yes
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 600.00mm
Wire Insulation Diameter 4.06mm max.
Wire Size AWG 12

Details

Current - Maximum per Contact 25.0A
Pitch - Mating Interface 5.70mm
Material - Plating Mating Tin
Lock to Mating Part Yes
Voltage - Maximum 600V AC (RMS)/DC
Single Ended Yes
Gender Female-Pigtail
Wire/Cable Type UL 1015
Termination Interface: Style Crimp or Compression
Material - Plating Termination Tin
Material - Resin Nylon
Number of Rows 1
Material - Metal High Conductivity Copper
Circuits (Loaded) 3

Description

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 600.00Mm Length, Tin Plated
