  9. Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 300.00Mm Length, Tin
Shop All Communication Cables
Molex

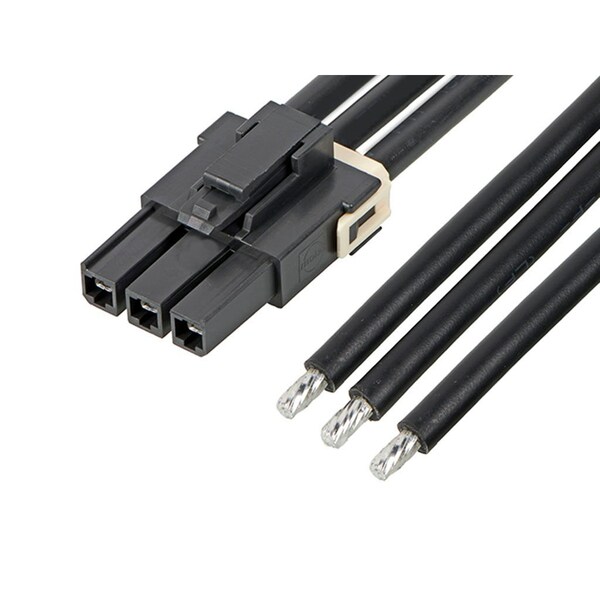

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 300.00Mm Length, Tin

product price: $7.15
/ea
Sold in multiples of 15 for $107.25
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Length 300.00mm
  • Single Ended Yes
  • Gender Female-Pigtail
  • Circuits (Loaded) 3
  • Material - Plating Mating Tin
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 300.00mm
Wire Size AWG 12
Wire Insulation Diameter 4.06mm max.

Details

Single Ended Yes
Gender Female-Pigtail
Circuits (Loaded) 3
Material - Plating Mating Tin
Lock to Mating Part Yes
Current - Maximum per Contact 25.0A
Termination Interface: Style Crimp or Compression
Pitch - Mating Interface 5.70mm
Material - Resin Nylon
Wire/Cable Type UL 1015
Material - Plating Termination Tin
Number of Rows 1
Voltage - Maximum 600V AC (RMS)/DC
Material - Metal High Conductivity Copper

Description

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 300.00Mm Length, Tin Plated
