Shop All Communication Cables
Molex

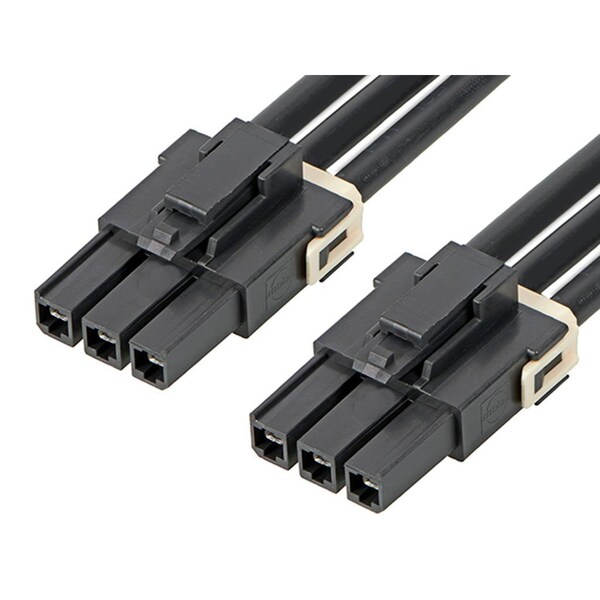

Mega-Fit Female-To-Mega-Fit Female Off-The-Shelf (Ots) Cable Assembly, Single Row, 150.00Mm Length
Mfr # 2164001031
Zoro # G205925778
product price: $6.15
/ea
Sold in multiples of 15 for $92.25
$92.25
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Cable Length 150.00mm
- Pitch - Mating Interface 5.70mm
- Current - Maximum per Contact 25.0A
- Gender Female-Female
- Material - Metal High Conductivity Copper
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2164001031
- Zoro # G205925778
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 150.00mm |
Wire Size AWG | 12 |
Wire Insulation Diameter | 4.06mm max. |
Details
Pitch - Mating Interface | 5.70mm |
Current - Maximum per Contact | 25.0A |
Gender | Female-Female |
Material - Metal | High Conductivity Copper |
Number of Rows | 1 |
Circuits (Loaded) | 3 |
Wire/Cable Type | UL 1015 |
Material - Plating Termination | Tin |
Material - Resin | Nylon |
Lock to Mating Part | Yes |
Material - Plating Mating | Tin |
Termination Interface: Style | Crimp or Compression |
Voltage - Maximum | 600V AC (RMS)/DC |
