Molex

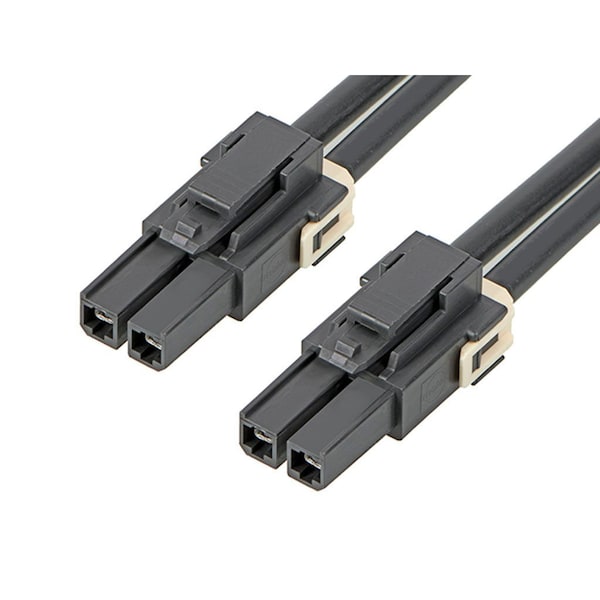

Mega-Fit Female-To-Mega-Fit Female Off-The-Shelf (Ots) Cable Assembly, Single Row, 150.00Mm Length

product price: $5.79
/ea
Sold in multiples of 15 for $86.85
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Length 150.00mm
  • Gender Female-Female
  • Termination Interface: Style Crimp or Compression
  • Current - Maximum per Contact 25.0A
  • Wire Insulation Diameter 4.06mm max.
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 150.00mm
Wire Insulation Diameter 4.06mm max.
Wire Size AWG 12

Details

Gender Female-Female
Termination Interface: Style Crimp or Compression
Current - Maximum per Contact 25.0A
Material - Plating Mating Tin
Material - Metal High Conductivity Copper
Circuits (Loaded) 2
Pitch - Mating Interface 5.70mm
Wire/Cable Type UL 1015
Lock to Mating Part Yes
Material - Plating Termination Tin
Number of Rows 1
Material - Resin Nylon
Voltage - Maximum 600V AC (RMS)/DC
