Shop All Hazardous Location Plugs
Molex

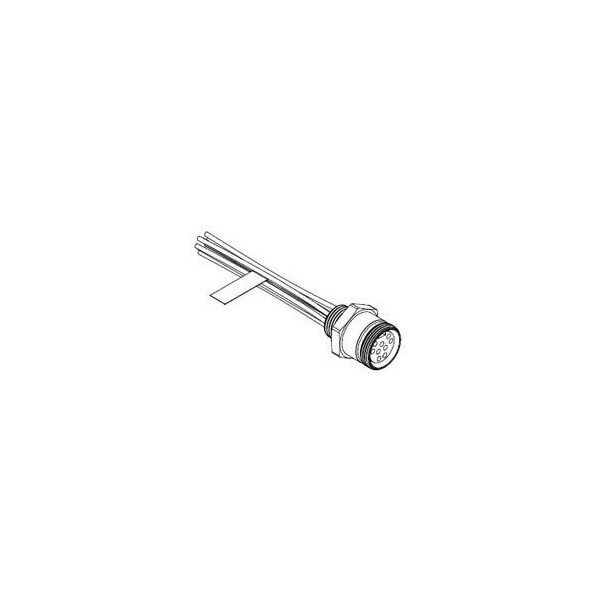

MC 9P FR 6 16/1 PVC
Mfr # 1300150124
Zoro # G2081098
product price: $137.99
/ea
Free Shipping & Returns
$137.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Length 1.83m
- Mounting Thread Size 1/2" - 14 NPT
- Current - Maximum per Contact 7.0A
- Wire Size AWG 16
- UL E152210
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 1300150124
- Zoro # G2081098
- UPC # 78678842917
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Length | 1.83m |
Mounting Thread Size | 1/2" - 14 NPT |
Wire Size AWG | 16 |
Details
Current - Maximum per Contact | 7.0A |
UL | E152210 |
Keyway | Single |
Orientation | Straight |
Poles | 9 |
Wire/Cable Type | UL 1015 |
CSA | LR6837 |
Temperature Range - Operating | -20°C to +105°C |
Coupling Type | External Thread |
Voltage - Maximum | 600V AC/DC |
Material - Component | Zinc Die-Cast with Black Epoxy |
Gender | Female |
Series | 130015 |
Type | Single Ended (pigtail) |
IP Rating | IP67 |
Panel Mount | Front |
Product Name | Mini-Change |
Description
