Shop All Hazardous Location Plugs
Molex

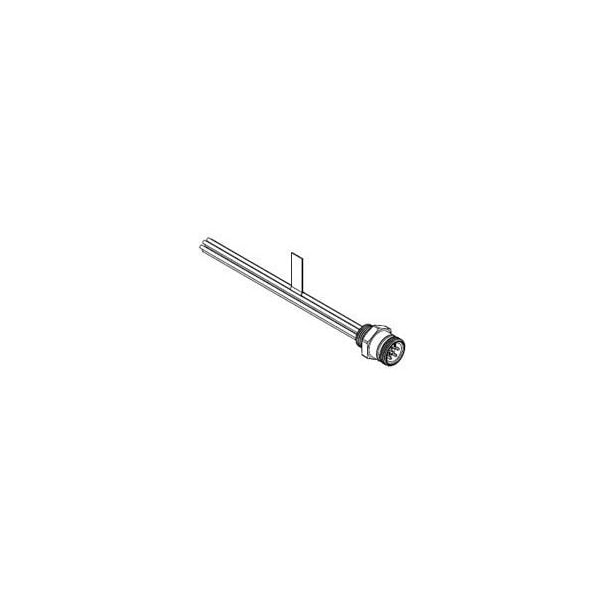

MC 8P MR 12IN 16/1 PVC
Mfr # 1300140078
Zoro # G2076694
product price: $58.65
/ea
Sold in multiples of 2 for $117.30
$117.30
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- NEMA Rating NEMA 6
- Length 0.305m
- Wire Size AWG 16
- Temperature Range - Operating -20°C to +105°C
- Poles 8
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 1300140078
- Zoro # G2076694
- UPC # 781725532303
- Country of Origin Mexico
- Category Hazardous Location Plugs
Dimensions
Length | 0.305m |
Wire Size AWG | 16 |
Mounting Thread Size | 1/2" - 14 NPT |
Details
NEMA Rating | NEMA 6 |
Temperature Range - Operating | -20°C to +105°C |
Poles | 8 |
Coupling Type | External Thread |
Keyway | Single |
Gender | Male |
Voltage - Maximum | 600V AC/DC |
Wire/Cable Type | UL 1015 |
UL | E152210 |
Material - Component | Zinc Die-Cast with Black Epoxy |
CSA | LR6837 |
Orientation | Straight |
Current - Maximum per Contact | 7.0A |
Series | 130014 |
Panel Mount | Front |
Type | Single Ended (pigtail) |
IP Rating | IP67 |
Product Name | Mini-Change |
