Shop All Hazardous Location Plugs
Molex

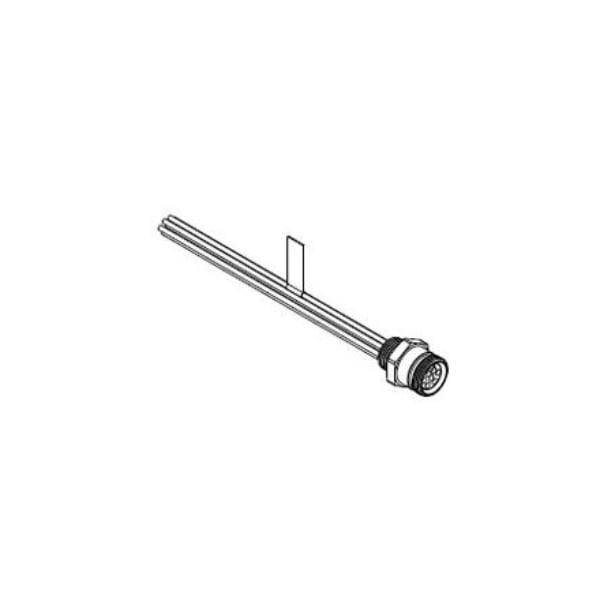

MC 8P FR 12IN 16/1 PVC
Mfr # 1300140061
Zoro # G2078121
product price: $59.05
/ea
Sold in multiples of 2 for $118.10
$118.10
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- NEMA Rating NEMA 6
- Length 0.305m
- Poles 8
- Gender Female
- CSA LR6837
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 1300140061
- Zoro # G2078121
- UPC # 781725530897
- Country of Origin Mexico
- Category Hazardous Location Plugs
Dimensions
Length | 0.305m |
Wire Size AWG | 16 |
Mounting Thread Size | 1/2" - 14 NPT |
Details
NEMA Rating | NEMA 6 |
Poles | 8 |
Gender | Female |
CSA | LR6837 |
Material - Component | Zinc Die-Cast with Black Epoxy |
UL | E152210 |
Keyway | Single |
Coupling Type | External Thread |
Voltage - Maximum | 600V AC/DC |
Orientation | Straight |
Wire/Cable Type | UL 1015 |
Current - Maximum per Contact | 7.0A |
Temperature Range - Operating | -20°C to +105°C |
IP Rating | IP67 |
Series | 130014 |
Type | Single Ended (pigtail) |
Product Name | Mini-Change |
Panel Mount | Front |
Description
