Shop All Hazardous Location Plugs
Molex

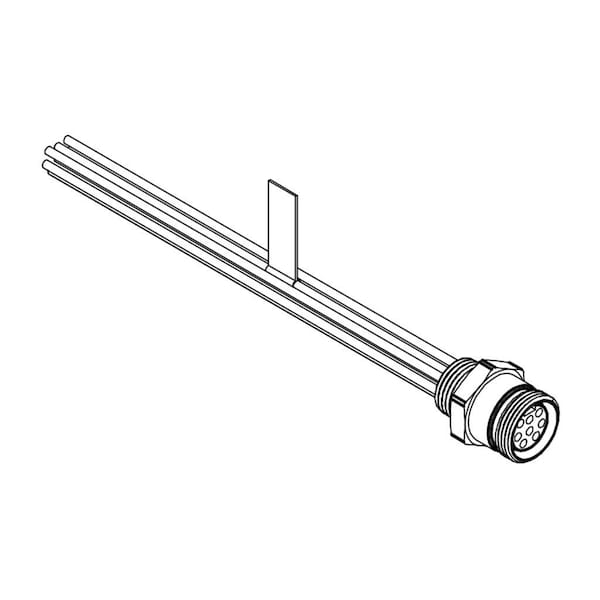

MC 7P FR 12IN 16/1 PVC
Mfr # 1300140037
Zoro # G2080562
product price: $58.29
/ea
Sold in multiples of 2 for $116.58
$116.58
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- NEMA Rating NEMA 6
- Length 0.305m
- CSA LR6837
- Poles 7
- Mounting Thread Size 1/2" - 14 NPT
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 1300140037
- Zoro # G2080562
- UPC # 781725532297
- Country of Origin Mexico
- Category Hazardous Location Plugs
Dimensions
Length | 0.305m |
Mounting Thread Size | 1/2" - 14 NPT |
Wire Size AWG | 16 |
Details
NEMA Rating | NEMA 6 |
CSA | LR6837 |
Poles | 7 |
Temperature Range - Operating | -20°C to +105°C |
Keyway | Single |
Coupling Type | External Thread |
UL | E152210 |
Material - Component | Zinc Die-Cast with Black Epoxy |
Current - Maximum per Contact | 8.0A |
Wire/Cable Type | UL 1015 |
Orientation | Straight |
Voltage - Maximum | 600V AC/DC |
Gender | Female |
Series | 130014 |
Type | Single Ended (pigtail) |
IP Rating | IP67 |
Panel Mount | Front |
Product Name | Mini-Change |
