Shop All Hazardous Location Plugs
Molex

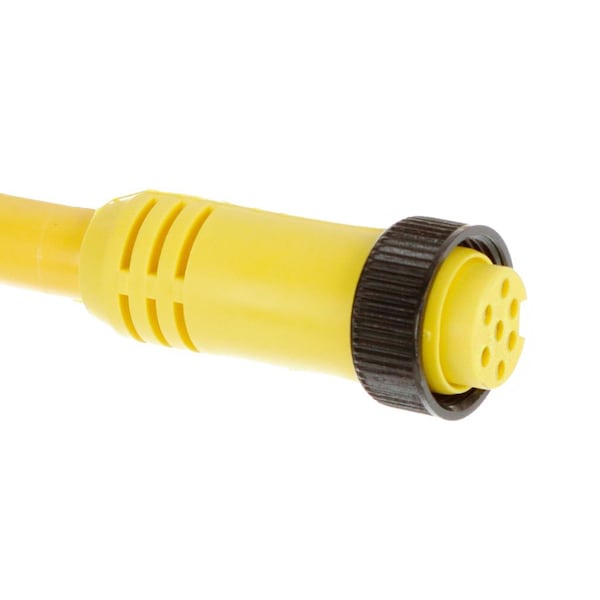

MC 7P FP 6 16/7 PVC
Mfr # 1300070073
Zoro # G2087264
product price: $97.95
/ea
Free Shipping & Returns
$97.95
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Cable Diameter 13.72mm (.540")
- Voltage - Maximum 600V
- Keyway Single
- Wire Size AWG 16
- UL E152210
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 1300070073
- Zoro # G2087264
- UPC # 786788439965
- Country of Origin Mexico
- Category Hazardous Location Plugs
Dimensions
Cable Diameter | 13.72mm (.540") |
Wire Size AWG | 16 |
Cable Length | 1.83m (6.0') |
Details
Voltage - Maximum | 600V |
Keyway | Single |
UL | E152210 |
Poles | 7 |
CSA | LR6837 |
Material - Cable Jacket | PVC |
Orientation | Straight to Pigtail |
Temperature Range - Operating | -20°C to +105°C |
Coupling Style | Threaded |
Material - Coupling Nut | Black Epoxy Coated Zinc |
Material - Plating Mating | Gold |
Gender | Female-Pigtail |
Material - Connector Body | PVC |
Current - Maximum per Contact | 8.0A |
Color - Cable Jacket | Yellow |
Wire/Cable Type | STOOW |
