Shop All Hazardous Location Plugs
Molex

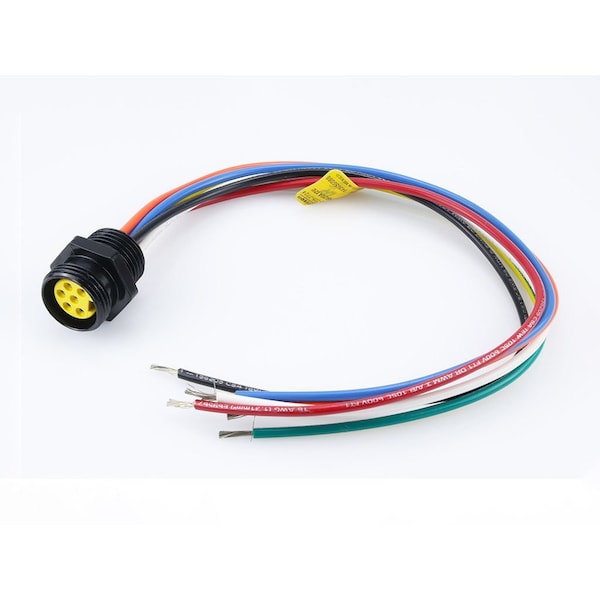

MC 6P FR 1M 16/1 PVC
Mfr # 1300130587
Zoro # G7920610
product price: $43.25
/ea
Sold in multiples of 2 for $86.50
$86.50
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- NEMA Rating NEMA 6
- Length 1.0m
- Mounting Thread Size 1/2" - 14 NPT
- Temperature Range - Operating -20°C to +105°C
- Current - Maximum per Contact 8.0A
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 1300130587
- Zoro # G7920610
- Country of Origin Unknown
- Category Hazardous Location Plugs
Dimensions
Length | 1.0m |
Mounting Thread Size | 1/2" - 14 NPT |
Wire Size AWG | 16 |
Details
NEMA Rating | NEMA 6 |
Temperature Range - Operating | -20°C to +105°C |
Current - Maximum per Contact | 8.0A |
Voltage - Maximum | 600V AC/DC |
Orientation | Straight |
Coupling Type | External Thread |
Poles | 6 |
UL | E152210 |
Keyway | Single |
CSA | LR6837 |
Material - Component | Zinc Die-Cast with Black Epoxy |
Gender | Female |
Series | 130013 |
Type | Single Ended (pigtail) |
Product Name | Mini-Change |
IP Rating | IP67 |
Wire/Cable Type | UL 1015 |
Panel Mount | Front |
