Molex

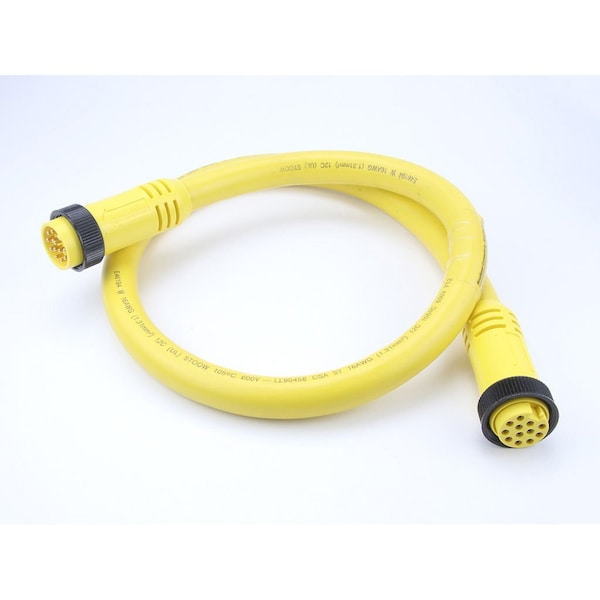

MC 12P MFE 20 16/12 PVC
Mfr # 1300120127
Zoro # G2089470
product price: $412.99
/ea
Free Shipping & Returns
$412.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Orientation Straight to Straight
- Voltage - Maximum 600V
- Cable Length 6.10m (20.0')
- Temperature Range - Operating -20°C to +105°C
- Material - Coupling Nut Black Epoxy Coated Zinc
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 1300120127
- Zoro # G2089470
- UPC # 78678844182
- Country of Origin Mexico
- Category Hazardous Location Plugs
Dimensions
Cable Length | 6.10m (20.0') |
Wire Size AWG | 16 |
Cable Diameter | 18.03mm (.710") |
Details
Orientation | Straight to Straight |
Voltage - Maximum | 600V |
Temperature Range - Operating | -20°C to +105°C |
Material - Coupling Nut | Black Epoxy Coated Zinc |
Material - Plating Mating | Gold |
Coupling Style | Threaded |
Color - Cable Jacket | Yellow |
Gender | Female-Male |
UL | E152210 |
Wire/Cable Type | STOOW |
CSA | LR6837 |
Material - Cable Jacket | PVC |
Material - Connector Body | PVC |
Keyway | Single |
Poles | 12 |
Current - Maximum per Contact | 5.0A |
