Molex

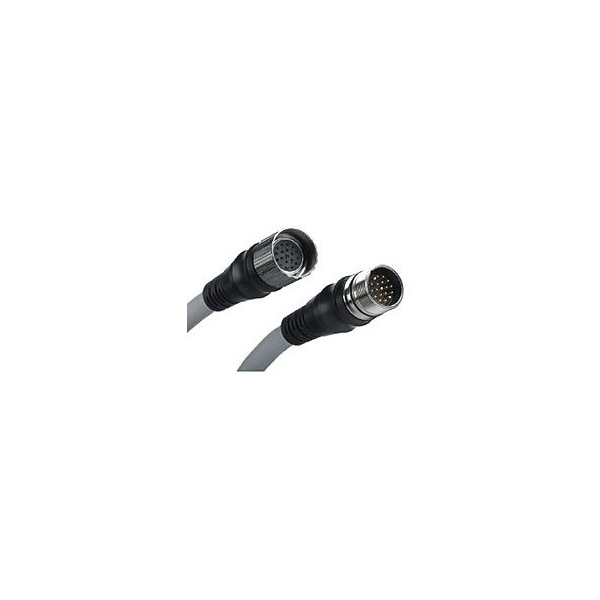

M23 19P FP 90D 10M HOME RUN

product price: $431.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Cable Length 10.0m (32.81')
  • Keyway None
  • IP Rating IP67
  • Type Single Ended
  • Orientation 90° to Pigtail
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 10.0m (32.81')
Cable Diameter 11.43mm (.450")
Wire Size (AWG) 18, 22

Details

Keyway None
IP Rating IP67
Type Single Ended
Orientation 90° to Pigtail
Gender Female-Pigtail
Product Name Brad M23
Series 120094
Voltage - Maximum 63V AC/DC
Poles 19
Color - Cable Jacket Black
Connector End A M23
LED Indicator No
Temperature Range - Operating -25° to +90°C
Material - Connector Body TPU
Material - Plating Mating Gold
Connector End B Pigtail
Coupling Style Threaded
Material - Coupling Nut Nickel-plated Brass
Current - Maximum per Contact 6.0A
Material - Contact Copper Alloy
Material - Cable Jacket PUR
