Shop All Hazardous Location Plugs
Molex

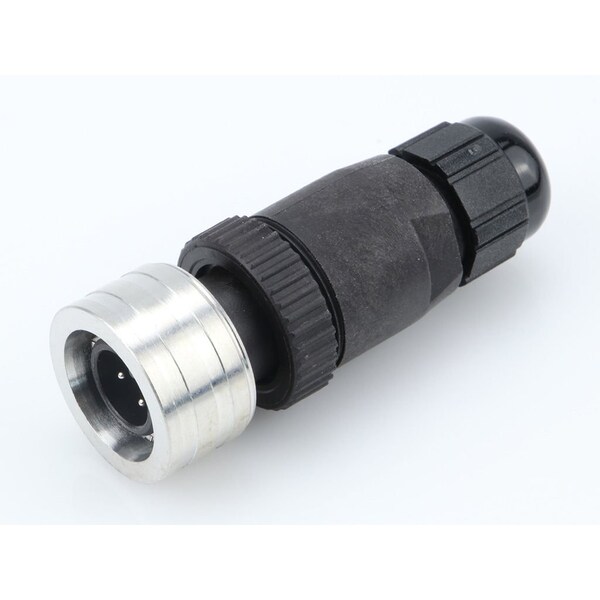

M12U ATTACHABLE 4P MP ST
Mfr # 1200850003
Zoro # G7769219
product price: $41.29
/ea
Sold in multiples of 3 for $123.87
$123.87
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material - Coupling Nut Nickel-plated Brass
- Series 120085
- Diagnostics / LEDs No
- Type Field Attachable Connector
- Product Name Ultra-Lock (M12)
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 1200850003
- Zoro # G7769219
- Country of Origin Unknown
- Category Hazardous Location Plugs
Dimensions
Cable Diameter | 3.30-6.60mm (.130-.260") |
Wire Size (AWG) | 18 |
Details
Material - Coupling Nut | Nickel-plated Brass |
Series | 120085 |
Diagnostics / LEDs | No |
Type | Field Attachable Connector |
Product Name | Ultra-Lock (M12) |
Material - Connector Body | PA |
Material - Plating Mating | Gold |
Orientation | Straight |
Approvals | cCSAus certified |
Keyway | Single |
Poles | 4 |
CSA | LR6837 |
Voltage - Maximum | 250V AC / 300V DC |
Gender | Male |
Material - Contact | Brass |
Coupling Type | Push to Lock |
IP Rating | IP69K |
Temperature Range - Operating | -25°C to +90°C |
Current - Maximum per Contact | 4.0A |
