Shop All Communication Cables
Molex

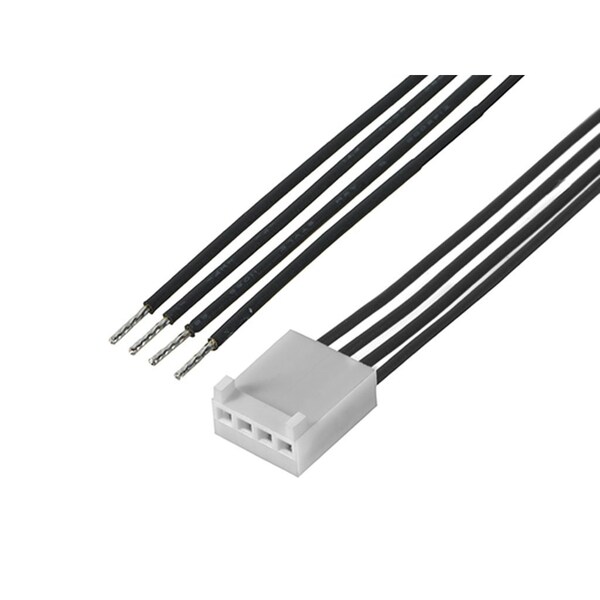

Kk 2.54 Sr R-S 4Ckt 600Mm Disc Sn
Mfr # 2177971043
Zoro # G105925700
product price: $3.45
/ea
Sold in multiples of 1700 for $5,865.00
$5,865.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 217797
- Type Discrete Wire Assembly
- Cable Length 600.00mm
- Assembly Configuration Dual Ended Connectors
- Material - Plating Mating Tin
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2177971043
- Zoro # G105925700
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 600.00mm |
Wire Insulation Diameter | 1.57mm max. |
Wire Size (AWG) | 22 |
Details
Series | 217797 |
Type | Discrete Wire Assembly |
Assembly Configuration | Dual Ended Connectors |
Material - Plating Mating | Tin |
Lock to Mating Part | Yes |
Pitch - Mating Interface | 2.54mm |
Connector to Connector | KK 254-to-Pigtail |
Number of Rows | 1 |
Single Ended | No |
Material - Metal | Brass |
Gender | Female-Pigtail |
Color - Resin | Natural (White) |
Material - Plating Termination | Tin |
Circuits (Loaded) | 4 |
Termination Interface Style | Crimp or Compression |
Product Name | KK 254 |
Wire/Cable Type | UL 11028 |
Material - Resin | Nylon |
