Molex

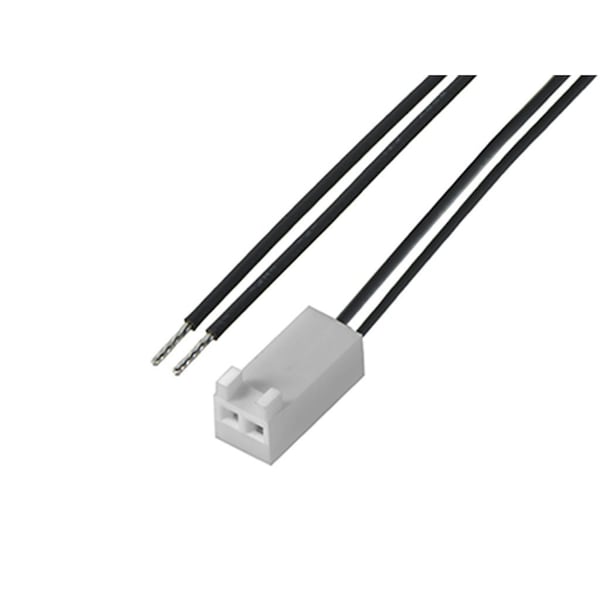

Kk 2.54 Sr R-S 2Ckt 600Mm Disc Sn
Mfr # 2177971023
Zoro # G405925608
product price: $1.99
/ea
Sold in multiples of 1450 for $2,885.50
$2,885.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 217797
- Cable Length 600.00mm
- Type Discrete Wire Assembly
- Wire Insulation Diameter 1.57mm max.
- Material - Plating Mating Tin
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2177971023
- Zoro # G405925608
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 600.00mm |
Wire Insulation Diameter | 1.57mm max. |
Wire Size (AWG) | 22 |
Details
Series | 217797 |
Type | Discrete Wire Assembly |
Material - Plating Mating | Tin |
Pitch - Mating Interface | 2.54mm |
Single Ended | No |
Wire/Cable Type | UL 11028 |
Connector to Connector | KK 254-to-Pigtail |
Number of Rows | 1 |
Material - Metal | Brass |
Lock to Mating Part | Yes |
Material - Plating Termination | Tin |
Material - Resin | Nylon |
Assembly Configuration | Dual Ended Connectors |
Color - Resin | Natural (White) |
Gender | Female-Pigtail |
Product Name | KK 254 |
Termination Interface Style | Crimp or Compression |
Circuits (Loaded) | 2 |
