Molex

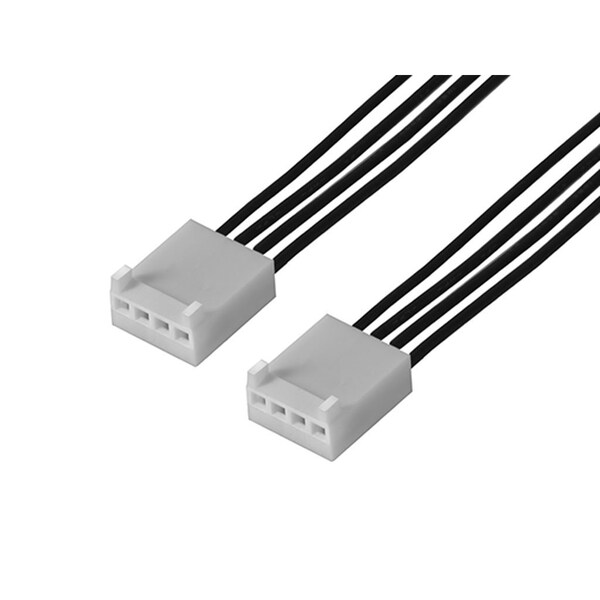

Kk 2.54 Sr R-R 4Ckt 150Mm Disc Sn

product price: $2.55
/ea
Sold in multiples of 1150 for $2,932.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 217796
  • Type Discrete Wire Assembly
  • Cable Length 150.00mm
  • Product Name KK 254
  • Wire/Cable Type UL 11028
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 150.00mm
Wire Insulation Diameter 1.57mm max.
Wire Size (AWG) 22

Details

Series 217796
Type Discrete Wire Assembly
Product Name KK 254
Wire/Cable Type UL 11028
Gender Female-Female
Lock to Mating Part Yes
Material - Plating Mating Tin
Pitch - Mating Interface 2.54mm
Number of Rows 1
Material - Plating Termination Tin
Termination Interface Style Crimp or Compression
Single Ended No
Color - Resin Natural (White)
Material - Resin Nylon
Material - Metal Brass
Circuits (Loaded) 4
Assembly Configuration Dual Ended Connectors
Connector to Connector KK 254-to-KK 254
