Shop All Communication Cables
Molex

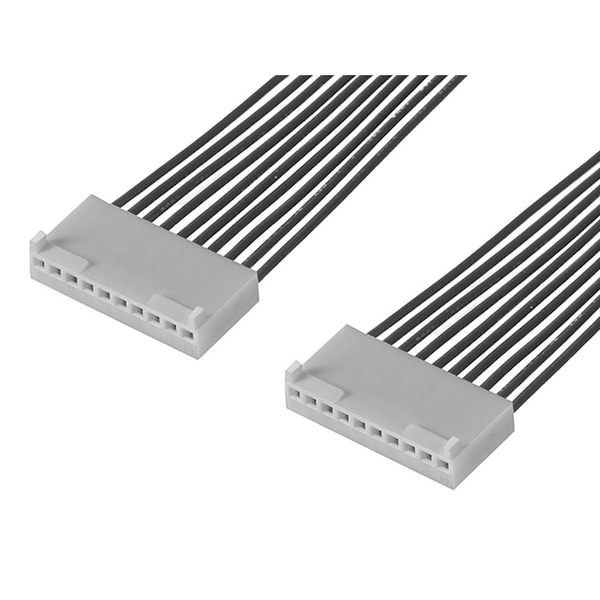

Kk 2.54 Sr R-R 10Ckt 300Mm Disc Sn
Mfr # 2177961102
Zoro # G205925600
Sold in multiples of 500 for $2,825.00
$2,825.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 217796
- Cable Length 300.00mm
- Type Discrete Wire Assembly
- Wire/Cable Type UL 11028
- Connector to Connector KK 254-to-KK 254
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2177961102
- Zoro # G205925600
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 300.00mm |
Wire Size (AWG) | 22 |
Wire Insulation Diameter | 1.57mm max. |
Details
Series | 217796 |
Type | Discrete Wire Assembly |
Wire/Cable Type | UL 11028 |
Connector to Connector | KK 254-to-KK 254 |
Material - Resin | Nylon |
Lock to Mating Part | Yes |
Product Name | KK 254 |
Number of Rows | 1 |
Pitch - Mating Interface | 2.54mm |
Gender | Female-Female |
Material - Plating Mating | Tin |
Single Ended | No |
Circuits (Loaded) | 10 |
Termination Interface Style | Crimp or Compression |
Color - Resin | Natural (White) |
Plating min - Mating | 2.540µm |
Assembly Configuration | Dual Ended Connectors |
Material - Plating Termination | Tin |
Material - Metal | Brass |
