Shop All Hazardous Location Plugs
Molex

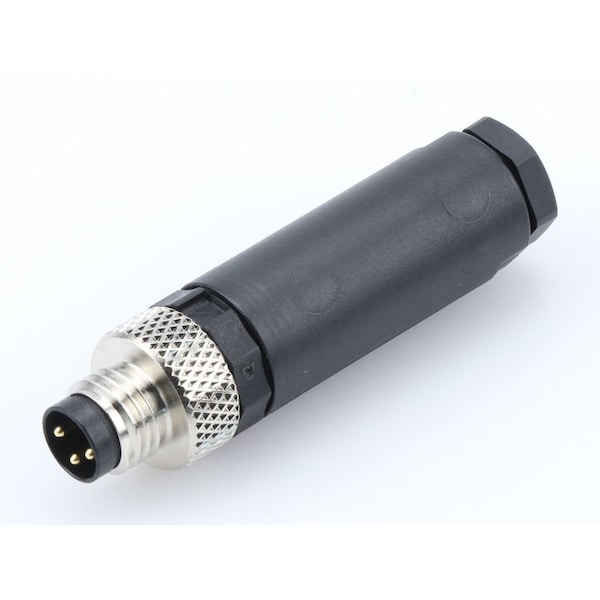

FA M8 3P MA STR SCR UNSH
Mfr # 1200910023
Zoro # G2076703
Sold in multiples of 4 for $99.40
$99.40
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Gender Male
- Keyway None
- Material - Plating Mating Gold
- Cable Diameter 3.50-5.00mm (.138-.197")
- Voltage - Maximum 60V
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 1200910023
- Zoro # G2076703
- Country of Origin Germany
- Category Hazardous Location Plugs
Dimensions
Cable Diameter | 3.50-5.00mm (.138-.197") |
Wire Size AWG | 20-26 |
Details
Gender | Male |
Keyway | None |
Material - Plating Mating | Gold |
Voltage - Maximum | 60V |
Poles | 3 |
Material - Connector Body | PA |
Temperature Range - Operating | -40°C to +85°C |
Coupling Type | External Thread |
Orientation | Straight |
Material - Coupling Nut | Zinc Die-Cast, Nickel-Plated |
Current - Maximum per Contact | 4.0A |
Series | 120091 |
Material - Contact | Brass |
Approvals | cCSAus certified |
IP Rating | IP67 |
Diagnostics / LEDs | No |
Product Name | Nano-Change (M8) |
Type | Field Attachable Connector |
Description
