Molex

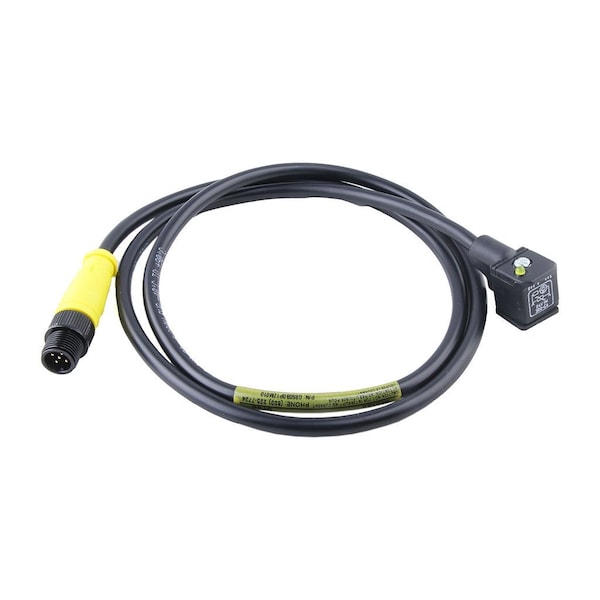

DIN 9.4MM DC BLK PUR 1M MIC

product price: $23.19
/ea
Sold in multiples of 3 for $69.57
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Wire Size AWG 22
  • Material - Connector Body Polypropylene
  • Voltage - Maximum 24V
  • Cable Length 1.0m (3.28')
  • Orientation 90° to Straight
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wire Size AWG 22
Cable Length 1.0m (3.28')
Cable Diameter 5.72mm (.225")

Details

Material - Connector Body Polypropylene
Voltage - Maximum 24V
Orientation 90° to Straight
Coupling Style Threaded
Current - Maximum per Contact 1.5A
Gender Male-Male
Material - Plating Mating Gold
LED Indicator Yellow
Temperature Range - Operating -25°C to +75°C
Poles 5
Material - Coupling Nut Nickel-plated Brass
Material - Cable Jacket PUR
Wire/Cable Type Shielded PUR
Color - Cable Jacket Black
Keyway Single
