Shop All Hazardous Location Plugs
Molex

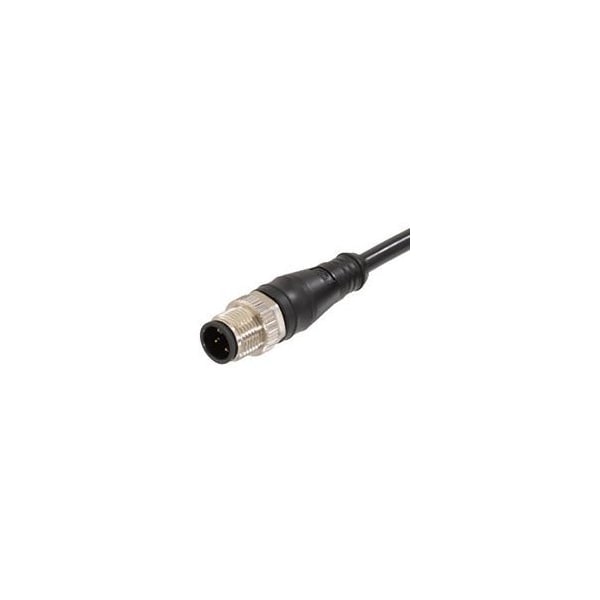

CSE M12 4P AC MA STR WSOR 10M SE UNSH BK
Mfr # 1200652278
Zoro # G2744628
product price: $69.99
/ea
Sold in multiples of 2 for $139.98
$139.98
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material - Coupling Nut Nickel-plated Brass
- Material - Cable Jacket TPU
- Cable Diameter 5.10mm (.201")
- Coupling Style Knurled Hexnut, Threaded
- Gender Male-Pigtail
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 1200652278
- Zoro # G2744628
- Country of Origin Poland
- Category Hazardous Location Plugs
Dimensions
Cable Diameter | 5.10mm (.201") |
Wire Size AWG | 22 |
Cable Length | 10.0m (32.81') |
Details
Material - Coupling Nut | Nickel-plated Brass |
Material - Cable Jacket | TPU |
Coupling Style | Knurled Hexnut, Threaded |
Gender | Male-Pigtail |
Material - Plating Mating | Gold |
Wire/Cable Type | WSOR |
Material - Connector Body | TPU |
Keyway | Single |
UL | E152210 |
Voltage - Maximum | 250V |
Poles | 4 |
Color - Cable Jacket | Black |
Orientation | Straight to Pigtail |
Current - Maximum per Contact | 4.0A |
Temperature Range - Operating | -25°C to +85°C |
