Molex

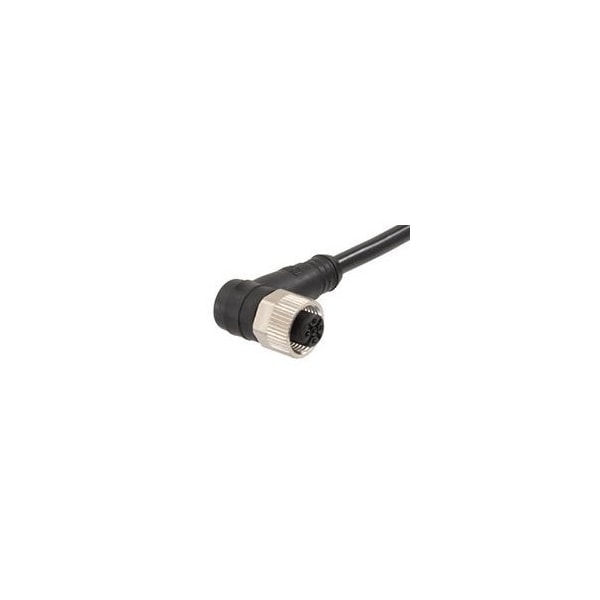

CSE M12 4P AC FE 90 WSOR 3M SE UNSH BK

product price: $35.15
/ea
Sold in multiples of 3 for $105.45
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Orientation 90° to Pigtail
  • Poles 4
  • Material - Connector Body TPU
  • Coupling Style Knurled Hexnut, Threaded
  • Material - Cable Jacket TPU
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 3.0m (9.84')
Cable Diameter 5.10mm (.201")
Wire Size AWG 22

Details

Orientation 90° to Pigtail
Poles 4
Material - Connector Body TPU
Coupling Style Knurled Hexnut, Threaded
Material - Cable Jacket TPU
UL E152210
Material - Plating Mating Gold
Temperature Range - Operating -25°C to +85°C
Current - Maximum per Contact 4.0A
Wire/Cable Type WSOR
Color - Cable Jacket Black
Voltage - Maximum 250V
Keyway Single
Gender Female-Pigtail
Material - Coupling Nut Nickel-plated Brass

Description
