  9. Cp-6.5 Receptacle Housing, Glow-Wire Capable, 6.50Mm Pitch, Dual Row, 2 Circuits, Red
Shop All Headers & Wire Housings
Molex

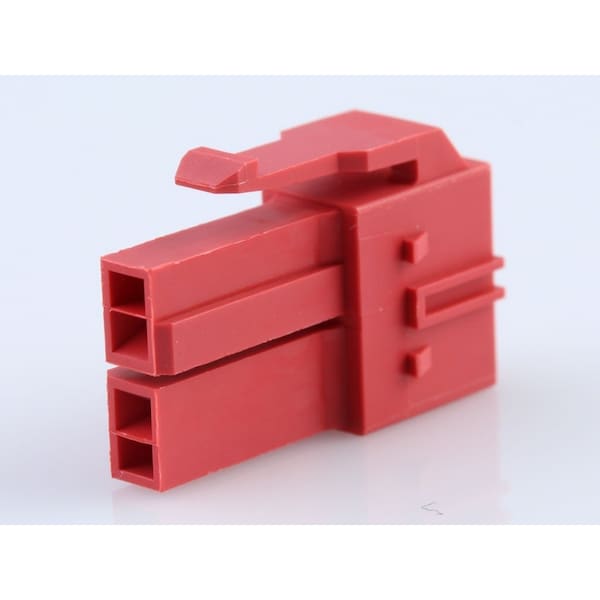

Cp-6.5 Receptacle Housing, Glow-Wire Capable, 6.50Mm Pitch, Dual Row, 2 Circuits, Red

product price: $0.19
/ea
Sold in multiples of 16000 for $3,040.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color Red
  • Number of Rows 2
  • Series 151207
  • Application Power, Wire-to-Board, Wire-to-Wire
  • Standards CSA Certified; UL E29179
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Details

Color Red
Number of Rows 2
Series 151207
Application Power, Wire-to-Board, Wire-to-Wire
Standards CSA Certified; UL E29179
Hole Center to Center 6.5 mm
Features Glow-Wire Capable
Material Nylon
Max. Temp. 105°C
Connector Type Receptacle
Flammability Rating UL 94V-0
Number of Contacts 2
Lock to Mating Part Yes
Keying to Mating Part Yes
UL E29179
Pitch - Mating Interface 6.50mm
Temperature Range - Operating -40° to +105°C
CSA LR19980
Circuits (maximum) 2
Flammability 94V-0
Material - Resin Nylon
Product Name CP-6.5
Polarized to Mating Part Yes
Glow-Wire Capable Yes
