Molex

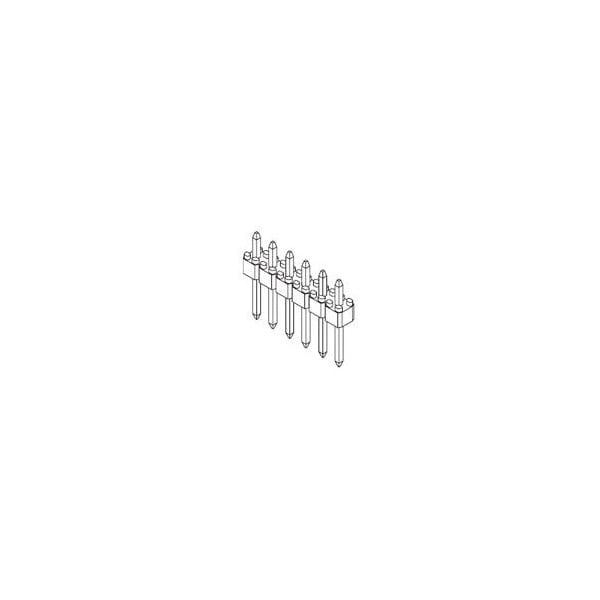

CGrid SR Vt Pn 675290mm AuG 2Ckt
Mfr # 90120-1082
Zoro # G4048752
product price: $0.87
/ea
Sold in multiples of 150 for $130.50
$130.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pitch - Mating Interface 2.54mm
- Voltage - Maximum 350V AC/DC
- Circuits (maximum) 2
- Material - Plating Mating Gold
- Termination Interface: Style Through Hole
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 90120-1082
- Zoro # G4048752
- Country of Origin Indonesia
- Category Hazardous Location Plugs
Dimensions
PC Tail Length | 2.90mm |
Details
Pitch - Mating Interface | 2.54mm |
Voltage - Maximum | 350V AC/DC |
Circuits (maximum) | 2 |
Material - Plating Mating | Gold |
Termination Interface: Style | Through Hole |
Circuits (Loaded) | 2 |
Duration at Max. Process Temperature (seconds) | 3 |
Orientation | Vertical |
Pitch - Termination Interface | 2.54mm |
Durability (mating cycles max) | 30 |
UL | E29179 |
Current - Maximum per Contact | 3.0A |
Flammability | 94V-0 |
PCB Thickness - Recommended | 1.60mm |
Number of Rows | 1 |
Material - Resin | Polyester |
Material - Plating Termination | Tin |
Temperature Range - Operating | -55° to +125°C |
Material - Metal | Brass |
Color - Resin | Black |
Max. Cycles at Max. Process Temperature | 1 |
Breakaway | Yes |
Process Temperature max. C | 235 |
