Molex

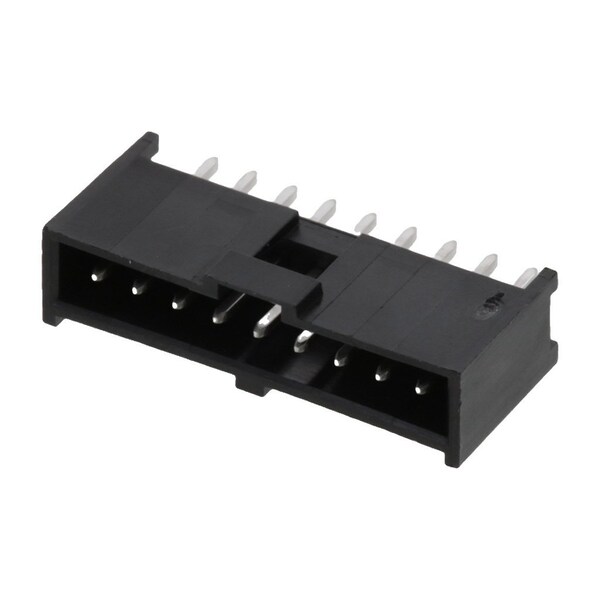

CGrid Shrd Hdr SR Vt TnA 9Ckt
Mfr # 90136-1109
Zoro # G4033081
product price: $1.99
/ea
Sold in multiples of 65 for $129.35
$129.35
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Shrouded Fully
- Material - Resin Polyester
- Material - Plating Termination Tin
- Temperature Range - Operating -55° to +125°C
- Flammability 94V-0
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 90136-1109
- Zoro # G4033081
- Country of Origin Singapore
- Category Hazardous Location Plugs
Dimensions
PC Tail Length | 2.90mm |
Details
Shrouded | Fully |
Material - Resin | Polyester |
Material - Plating Termination | Tin |
Temperature Range - Operating | -55° to +125°C |
Flammability | 94V-0 |
Circuits (maximum) | 9 |
Number of Rows | 1 |
CSA | LR19980 |
Circuits (Loaded) | 9 |
Color - Resin | Black |
PCB Thickness - Recommended | 1.60mm |
Current - Maximum per Contact | 3.0A |
Pitch - Mating Interface | 2.54mm |
Material - Metal | Brass |
Plating min - Mating | 3.048µm |
Voltage - Maximum | 350V AC/DC |
Pitch - Termination Interface | 2.54mm |
UL | E29179 |
Termination Interface: Style | Through Hole |
Lock to Mating Part | Yes |
Plating min - Termination | 3.048µm |
Orientation | Vertical |
Material - Plating Mating | Tin |
