Molex

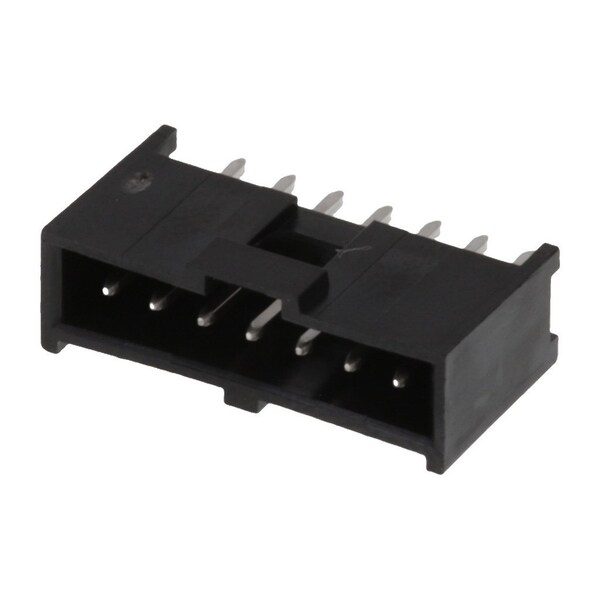

CGrid Shrd Hdr SR Vt TnA 7Ckt

product price: $1.89
/ea
Sold in multiples of 70 for $132.30
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color - Resin Black
  • PCB Thickness - Recommended 1.60mm
  • Temperature Range - Operating -55° to +125°C
  • Plating min - Mating 3.048µm
  • UL E29179
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

PC Tail Length 2.90mm

Details

Color - Resin Black
PCB Thickness - Recommended 1.60mm
Temperature Range - Operating -55° to +125°C
Plating min - Mating 3.048µm
UL E29179
Circuits (maximum) 7
Plating min - Termination 3.048µm
Current - Maximum per Contact 3.0A
Lock to Mating Part Yes
Number of Rows 1
Termination Interface: Style Through Hole
CSA LR19980
Circuits (Loaded) 7
Pitch - Termination Interface 2.54mm
Pitch - Mating Interface 2.54mm
Material - Plating Mating Tin
Orientation Vertical
Material - Plating Termination Tin
Material - Metal Brass
Material - Resin Polyester
Voltage - Maximum 350V AC/DC
Shrouded Fully
Flammability 94V-0
