Molex

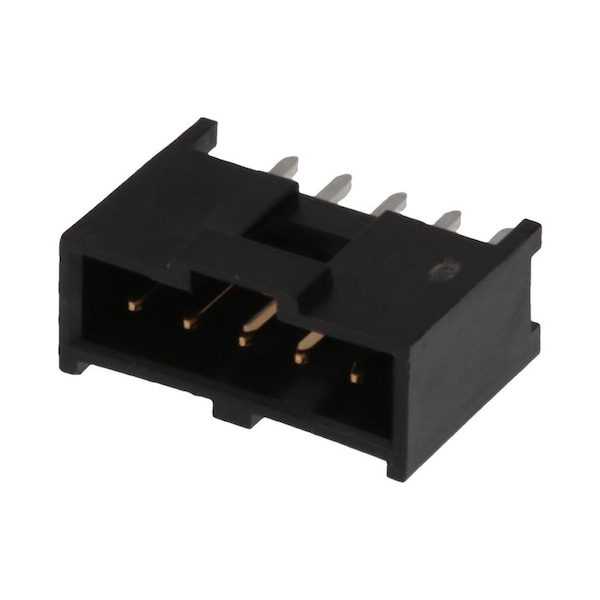

CGrid Shrd Hdr SR Vt AuE 5Ckt
Mfr # 90136-1205
Zoro # G4029554
product price: $2.19
/ea
Sold in multiples of 65 for $142.35
$142.35
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Current - Maximum per Contact 3.0A
- PCB Thickness - Recommended 1.60mm
- Lock to Mating Part Yes
- Orientation Vertical
- Material - Resin Polyester
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 90136-1205
- Zoro # G4029554
- Country of Origin Singapore
- Category Hazardous Location Plugs
Dimensions
| PC Tail Length | 2.90mm |
Details
| Current - Maximum per Contact | 3.0A |
| PCB Thickness - Recommended | 1.60mm |
| Lock to Mating Part | Yes |
| Orientation | Vertical |
| Material - Resin | Polyester |
| Flammability | 94V-0 |
| Voltage - Maximum | 350V AC/DC |
| Pitch - Termination Interface | 2.54mm |
| Circuits (maximum) | 5 |
| Plating min - Termination | 3.048µm |
| Material - Metal | Brass |
| Color - Resin | Black |
| Temperature Range - Operating | -55° to +125°C |
| Material - Plating Termination | Tin |
| Circuits (Loaded) | 5 |
| Plating min - Mating | 0.381µm |
| UL | E29179 |
| Shrouded | Fully |
| Number of Rows | 1 |
| CSA | LR19980 |
| Pitch - Mating Interface | 2.54mm |
| Termination Interface: Style | Through Hole |
| Material - Plating Mating | Gold |
