  11. Board Connector, 225 Contact(S), 1 Row(S), Male, Straight, 0.079 Inch Pitch, Press Fit Terminal,
Shop All PCB Connectors
Molex

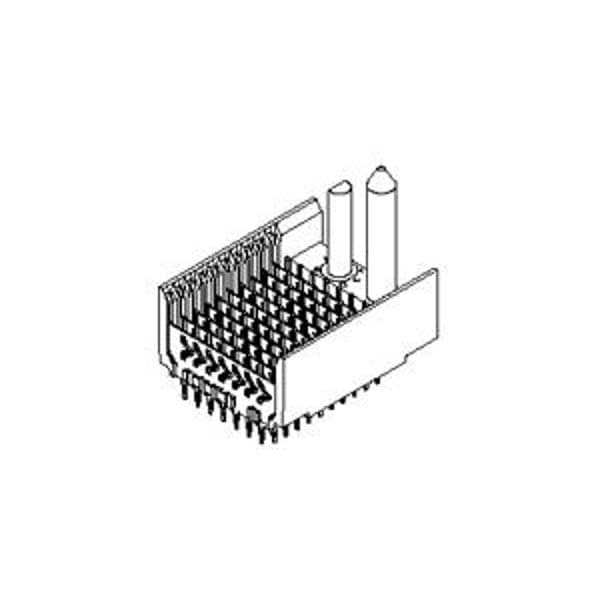

Board Connector, 225 Contact(S), 1 Row(S), Male, Straight, 0.079 Inch Pitch, Press Fit Terminal,

product price: $54.95
/ea
Sold in multiples of 9 for $494.55
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Color Black
  • Max. Voltage 120V AC/DC
  • Standards CSA Certified
  • Material High Temperature Thermoplastic
  • Hole Center to Center 2 mm (Mating Interface); 1 mm (Termination Interface)
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Details

Color Black
Max. Voltage 120V AC/DC
Standards CSA Certified
Material High Temperature Thermoplastic
Hole Center to Center 2 mm (Mating Interface); 1 mm (Termination Interface)
Terminal Type Through Hole - Compliant Pin
Max. Temp. 105°C
Features Surface Mount Compatible
Flammability Rating UL 94V-0
Current Rating 3 A
Contact Finish Gold Plated
Number of Contacts 200
Number of Rows 8
Contact Plating Thickness 0.762 µm
Terminal Finish Tin-Lead Plated

Description

Board Connector, 225 Contact(S), 1 Row(S), Male, Straight, 0.079 Inch Pitch, Press Fit Terminal, Locking, Black Insulator, Receptacle
