Shop All Hazardous Location Plugs
Molex

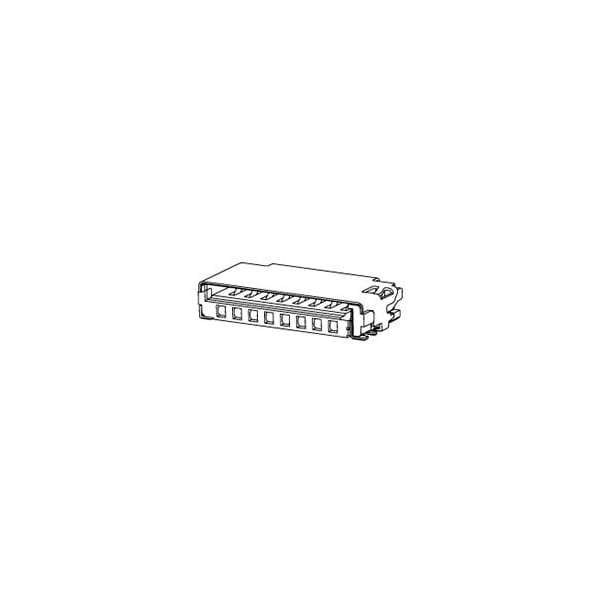

ASSY FOR TFR HEADER W/DETECT PIN
Mfr # 47571-0001
Zoro # G500415776
product price: $0.59
/ea
Sold in multiples of 4500 for $2,655.00
$2,655.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage - Maximum 5V DC
- Card Detection Switch Open
- Card Entry Location Front
- Process Temperature max. C 255
- Material - Shell Stainless Steel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 47571-0001
- Zoro # G500415776
- Country of Origin China
- Category Hazardous Location Plugs
Details
Voltage - Maximum | 5V DC |
Card Detection Switch | Open |
Card Entry Location | Front |
Process Temperature max. C | 255 |
Material - Shell | Stainless Steel |
Material - Contact | Copper Alloy |
Pitch - Termination Interface | 1.10mm |
Material - Resin | High Temperature Thermoplastic |
Current - Maximum per Contact | 0.5A |
PCB Retention | Yes |
Circuits (maximum) | 8 |
Color - Resin | Black |
Material - Plating Mating | Gold |
Max. Cycles at Max. Process Temperature | 2 |
Temperature Range - Operating | -40° to +85°C |
Circuits (Loaded) | 8 |
Duration at Max. Process Temperature (seconds) | 20 |
Durability (mating cycles max) | 10000 |
Termination Interface: Style | Surface Mount |
Material - Plating Termination | Nickel |
Pitch - Mating Interface | 1.10mm |
S-Parameter Model | SP-47571-001 |
Shielded | Yes |
