Shop All Wire Disconnects
Molex

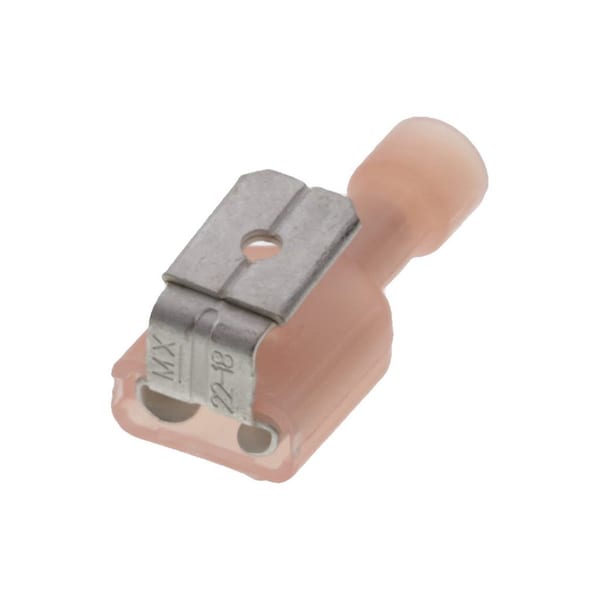

AA-2317 22-18 FULLY INSUL PIGGYBACK SPM
Mfr # 19013-0025
Zoro # G2088043
Sold in multiples of 4000 for $2,320.00
$2,320.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Insulation Nylon (PA)
- Material - Resin Nylon
- CSA LR18689
- Material - Plating Termination Tin
- Flammability 94V-2
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 19013-0025
- Zoro # G2088043
- Country of Origin Taiwan, Province of China
- Category Wire Disconnects
Dimensions
Wire Size AWG | 18, 20, 22 |
Tab Width | 6.35mm |
Wire Insulation Diameter | 3.50mm max. |
Details
Insulation | Nylon (PA) |
Material - Resin | Nylon |
CSA | LR18689 |
Material - Plating Termination | Tin |
Flammability | 94V-2 |
Orientation | Straight |
Barrel Type | Closed - Brazed |
Polarized to Mating Part | Yes |
Material - Plating Mating | Tin |
UL | E79133 |
Temperature Range - Operating | 105°C |
Color - Resin | Red |
Gender | Female |
Tab Thickness | 0.81mm |
Material - Metal | Brass |
Voltage - Maximum | 600V AC |
