Shop All Hazardous Location Plugs
Molex

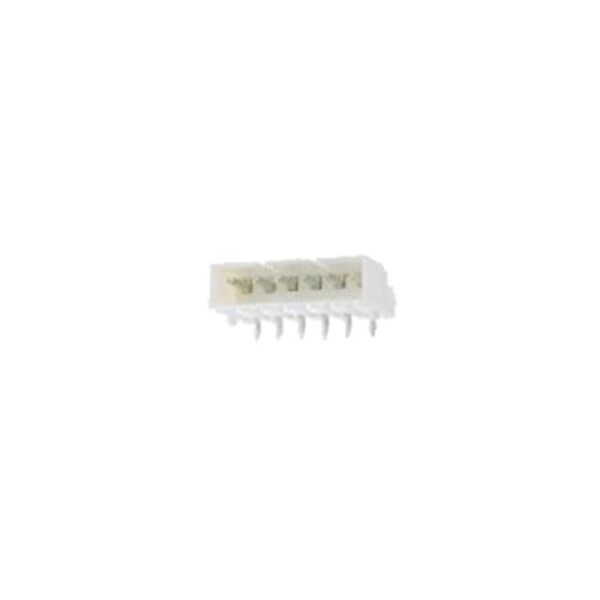

3.5 WtB Wafer Assy RA 10Ckt
Mfr # 53259-1029
Zoro # G4032250
original price:
$1.35
11% off
new price: $1.19
/ea
Sold in multiples of 60 for $71.40
$71.40
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Flammability 94V-0
- Circuits (Loaded) 10
- Orientation Right Angle
- Circuits (maximum) 10
- Keying to Mating Part Yes
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 53259-1029
- Zoro # G4032250
- Country of Origin Japan
- Category Hazardous Location Plugs
Dimensions
PC Tail Length | 3.50mm |
Details
Flammability | 94V-0 |
Circuits (Loaded) | 10 |
Orientation | Right Angle |
Circuits (maximum) | 10 |
Keying to Mating Part | Yes |
Material - Metal | Brass |
PCB Thickness - Recommended | 1.60mm |
Lock to Mating Part | Yes |
Material - Plating Termination | Tin |
Durability (mating cycles max) | 30 |
Number of Rows | 1 |
Pitch - Mating Interface | 3.50mm |
PCB Locator | Yes |
Shrouded | Fully |
Guide to Mating Part | Yes |
Material - Plating Mating | Tin |
Current - Maximum per Contact | 5.5A |
Termination Interface: Style | Through Hole |
Polarized to PCB | Yes |
UL | E29179 |
CSA | LR19980 |
Voltage - Maximum | 250V |
Temperature Range - Operating | -40° to +105°C |
