  10. /
  11. 250X032 PIG/BCK AVIK BB-8302 SPM
Shop All Hazardous Location Plugs
Molex

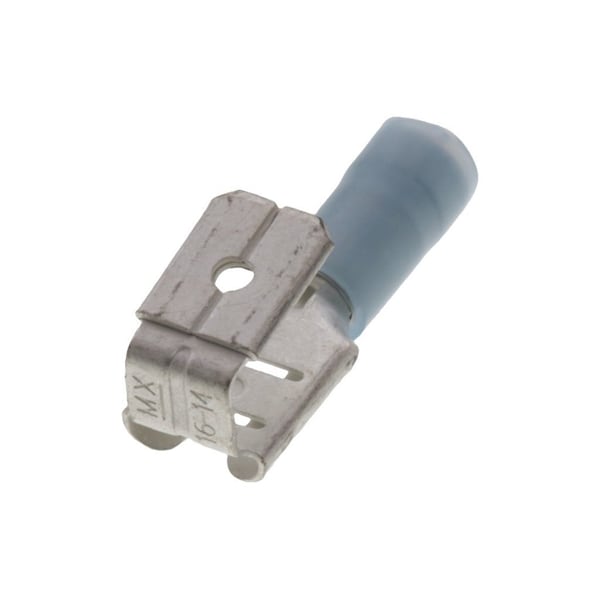

250X032 PIG/BCK AVIK BB-8302 SPM

product price: $0.64
/ea
Sold in multiples of 250 for $160.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Material - Metal Brass
  • Wire Insulation Diameter 3.56mm max.
  • Tab Width 6.35mm
  • CSA LR18689
  • Material - Plating Mating Tin
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wire Insulation Diameter 3.56mm max.
Tab Width 6.35mm
Wire Size mm² 1.30-2.00
Wire Size AWG 14, 16

Details

Material - Metal Brass
CSA LR18689
Material - Plating Mating Tin
Material - Plating Termination Tin
Temperature Range - Operating 105°C
UL E79133
Polarized to Mating Part Yes
Flammability 94V-2
Voltage - Maximum 300V AC
Tab Thickness 0.81mm
Gender Female
Color - Resin Blue
Insulation Nylon (PA)
Orientation Straight
Barrel Type Closed
