Molex

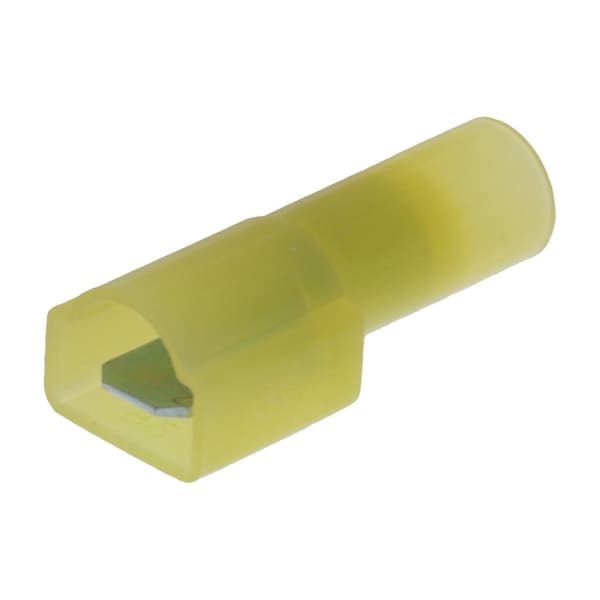

.250X.032 MALE FIQD COUPLER (C-2264)
Mfr # 19004-0009
Zoro # G2755688
product price: $0.51
/ea
Sold in multiples of 250 for $127.50
$127.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage - Maximum 600V
- Material - Plating Termination Zinc Chromate
- CSA LR18689
- Wire Insulation Diameter 6.99mm max.
- Color - Resin Yellow
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 19004-0009
- Zoro # G2755688
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Wire Insulation Diameter | 6.99mm max. |
Wire Size AWG | 10, 12 |
Tab Width | 6.35mm |
Details
Voltage - Maximum | 600V |
Material - Plating Termination | Zinc Chromate |
CSA | LR18689 |
Color - Resin | Yellow |
Material - Metal | Brass |
Gender | Male |
Flammability | 94V-2 |
UL | E79133 |
Barrel Type | Closed |
Material - Resin | Nylon |
Temperature Range - Operating | -65° to +105°C |
Orientation | Straight |
Insulation | Nylon (PA) |
Tab Thickness | 0.81mm |
Material - Plating Mating | Zinc Chromate |
