Molex

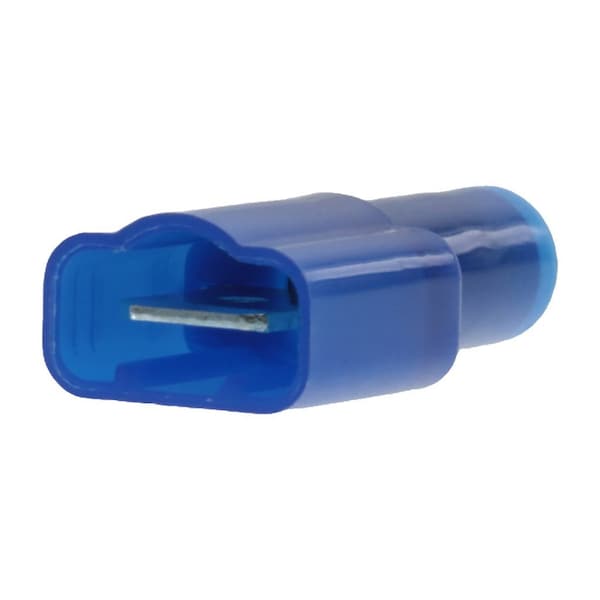

250X.032 MALE FIQD AVIKRIMP (BB-5262)
Mfr # 19001-0006
Zoro # G2745328
product price: $0.27
/ea
Sold in multiples of 300 for $81.00
$81.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Wire Size mm² 1.30-2.00
- Plating min - Termination 5.080µm
- Insulation Nylon (PA)
- Color - Resin Blue
- Plating min - Mating 5.080µm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 19001-0006
- Zoro # G2745328
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Wire Size mm² | 1.30-2.00 |
Tab Width | 6.35mm |
Wire Insulation Diameter | 4.32mm max. |
Wire Size AWG | 14, 16 |
Details
Plating min - Termination | 5.080µm |
Insulation | Nylon (PA) |
Color - Resin | Blue |
Plating min - Mating | 5.080µm |
Orientation | Straight |
CSA | LR18689 |
Temperature Range - Operating | -65° to +105°C |
Material - Plating Termination | Zinc Chromate |
Gender | Male |
Material - Plating Mating | Zinc Chromate |
Flammability | 94V-2 |
Tab Thickness | 0.81mm |
UL | E79133 |
Material - Metal | Brass |
Barrel Type | Closed |
Voltage - Maximum | 300V |
