Molex

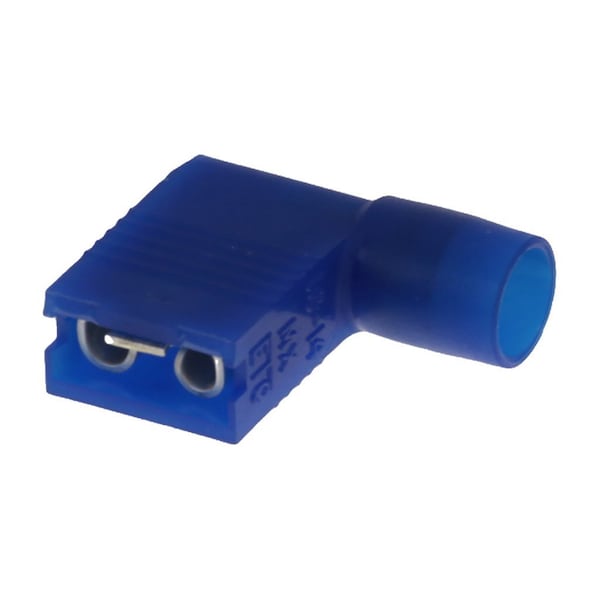

.250X.032 FIQD FLAG AVIKRIMP (BB-5221)

product price: $0.48
/ea
Sold in multiples of 300 for $144.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tab Thickness 0.81mm
  • Material - Resin Nylon
  • Orientation Flag
  • Wire Size mm² 1.30-2.00
  • Tab Width 6.35mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wire Size mm² 1.30-2.00
Tab Width 6.35mm
Wire Insulation Diameter 4.32mm max.
Wire Size AWG 14, 16

Details

Tab Thickness 0.81mm
Material - Resin Nylon
Orientation Flag
Flammability 94V-2
CSA LR18689
Temperature Range - Operating -65° to +105°C
Barrel Type Closed
Voltage - Maximum 600V
UL E79133
Insulation Nylon (PA)
Material - Metal Brass
Color - Resin Blue
Material - Plating Mating Tin
Material - Plating Termination Tin
Gender Female
Glow-Wire Capable Yes
