Shop All Hazardous Location Plugs
Molex

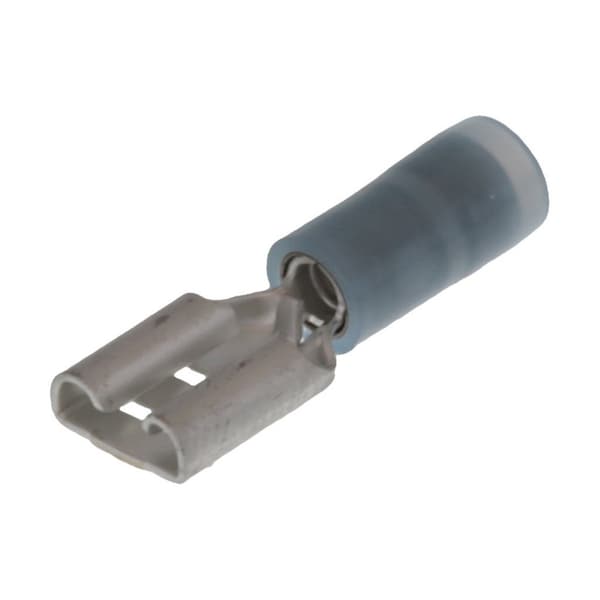

.250X.032 FEM.QD AVIK. TAPED (BB-8141T)
Mfr # 19019-0033
Zoro # G7920531
product price: $0.29
/ea
Sold in multiples of 1500 for $435.00
$435.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material - Metal Brass
- Flammability 94V-2
- Wire Insulation Diameter 3.50mm max.
- Material - Plating Mating Tin
- Barrel Type Closed
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 19019-0033
- Zoro # G7920531
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Wire Insulation Diameter | 3.50mm max. |
Tab Width | 6.35mm |
Wire Size mm² | 1.30-2.00 |
Wire Size AWG | 14, 16 |
Details
Material - Metal | Brass |
Flammability | 94V-2 |
Material - Plating Mating | Tin |
Barrel Type | Closed |
Material - Plating Termination | Tin |
Orientation | Straight |
Color - Resin | Blue |
Temperature Range - Operating | -65° to +105°C |
Voltage - Maximum | 300V |
Tab Thickness | 0.81mm |
CSA | LR18689 |
Insulation | Nylon (PA) |
UL | E79133 |
Gender | Female |
