Molex

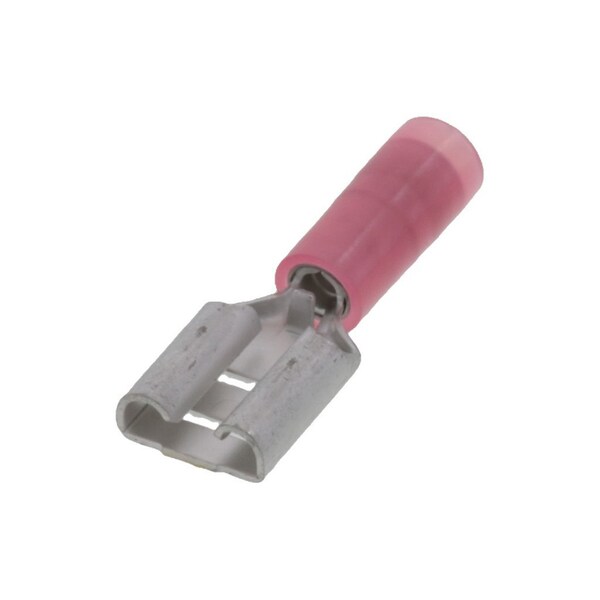

.250X.032 FEMALE QD AVIKRIMP (AA-8140)

product price: $0.50
/ea
Sold in multiples of 300 for $150.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Gender Female
  • Material - Plating Termination Tin
  • Barrel Type Closed
  • Material - Metal Brass
  • Wire Insulation Diameter 2.90mm max.
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wire Insulation Diameter 2.90mm max.
Tab Width 6.35mm
Wire Size AWG 18, 20, 22

Details

Gender Female
Material - Plating Termination Tin
Barrel Type Closed
Material - Metal Brass
Color - Resin Red
Insulation Nylon (PA)
CSA LR18689
Material - Plating Mating Tin
Flammability 94V-2
Voltage - Maximum 300V
Temperature Range - Operating -65° to +105°C
UL E79133
Tab Thickness 0.81mm
Orientation Straight
