Molex

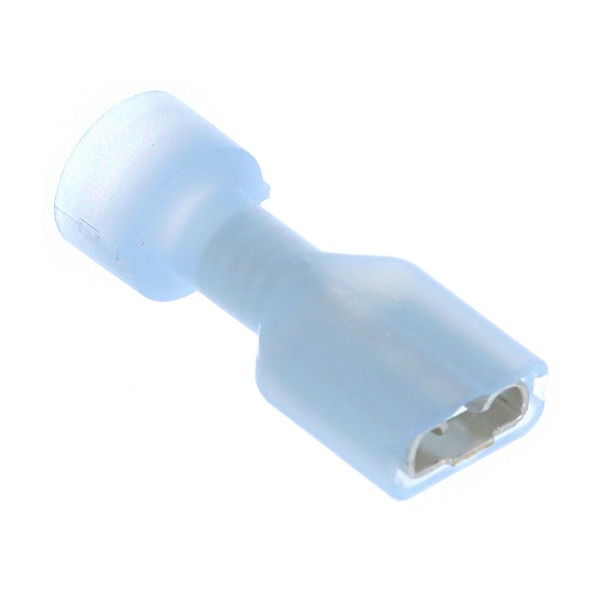

.250X.032 FEMALE FIQD EXPANDED (BB-2206X
Mfr # 19003-0047
Zoro # G4031672
Sold in multiples of 350 for $126.00
$126.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Orientation Straight
- CSA LR18689
- Flammability 94V-2
- Plating min - Mating 4.064µm
- Material - Plating Mating Tin
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 19003-0047
- Zoro # G4031672
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Wire Size mm² | 1.30-2.00 |
Wire Size AWG | 14, 16 |
Tab Width | 6.35mm |
Wire Insulation Diameter | 6.60mm max. |
Details
Orientation | Straight |
CSA | LR18689 |
Flammability | 94V-2 |
Plating min - Mating | 4.064µm |
Material - Plating Mating | Tin |
Termination Interface: Style | Crimp or Compression |
Color - Resin | Blue |
Material - Resin | Nylon |
Tab Thickness | 0.81mm |
Voltage - Maximum | 600V |
Barrel Type | Closed |
Plating min - Termination | 4.064µm |
UL | E79133 |
Gender | Female |
Insulation | Nylon (PA) |
Material - Metal | Brass |
Temperature Range - Operating | -65° to +105°C |
Material - Plating Termination | Tin |
